Diagnostic Flow Chart

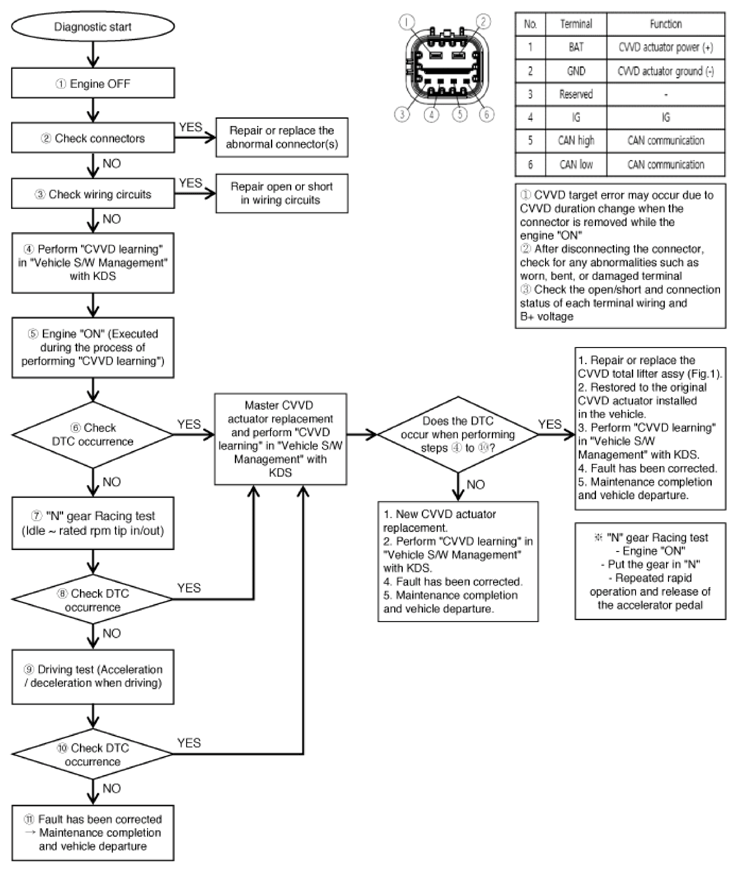

G16435582Courtesy of KIA MOTORS AMERICA, INC.

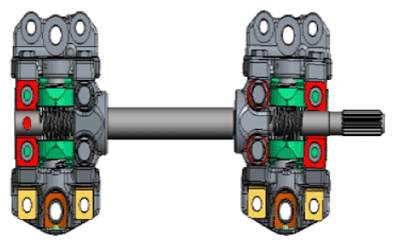

G16435583Courtesy of KIA MOTORS AMERICA, INC.
