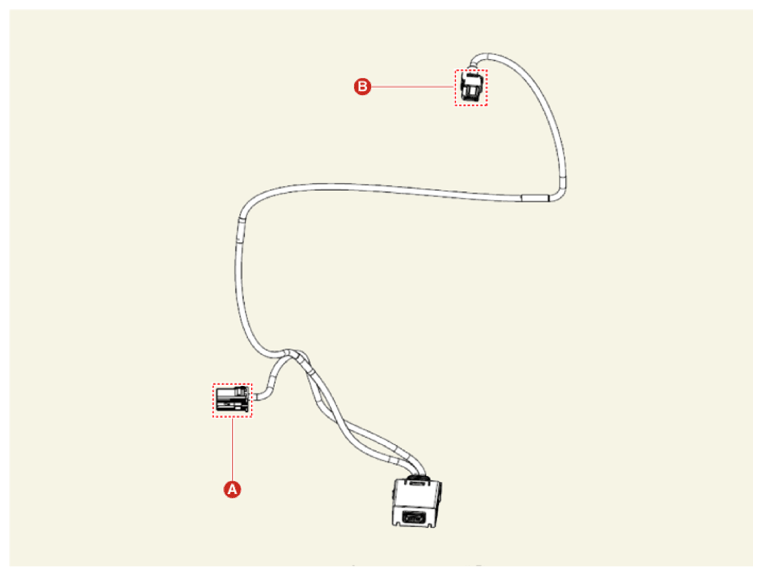

Connector And Terminal Function

G16425806Courtesy of KIA MOTORS AMERICA, INC.
Connector A Terminal Function
G16425807Courtesy of KIA MOTORS AMERICA, INC.
 1 DTC
2 -
3 Illumination (+)
4 Illumination (-)
5 Ground
Connector B Terminal Function
G16425808Courtesy of KIA MOTORS AMERICA, INC.
 1 USB Ground
2 USB Data (High)
3 USB Data (Low)
4 USB vcc
