Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

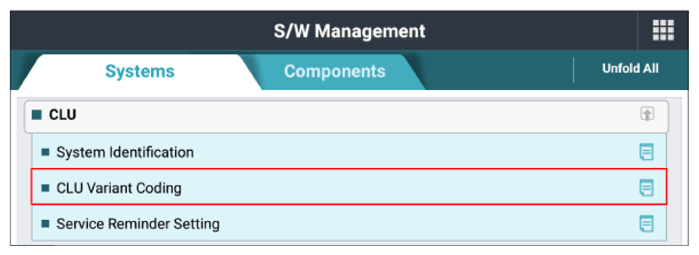

G16429623Courtesy of KIA MOTORS AMERICA, INC.

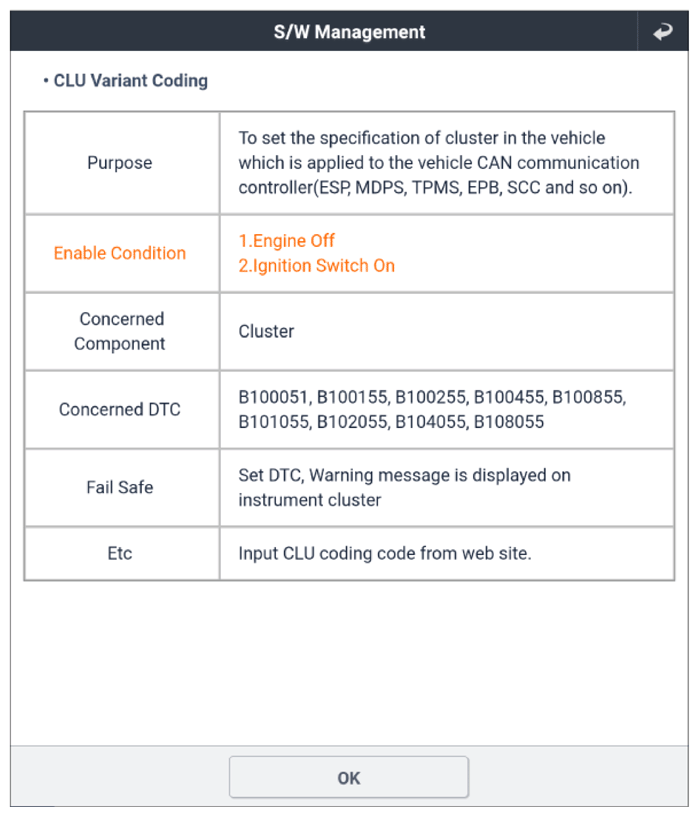

G16429624Courtesy of KIA MOTORS AMERICA, INC.

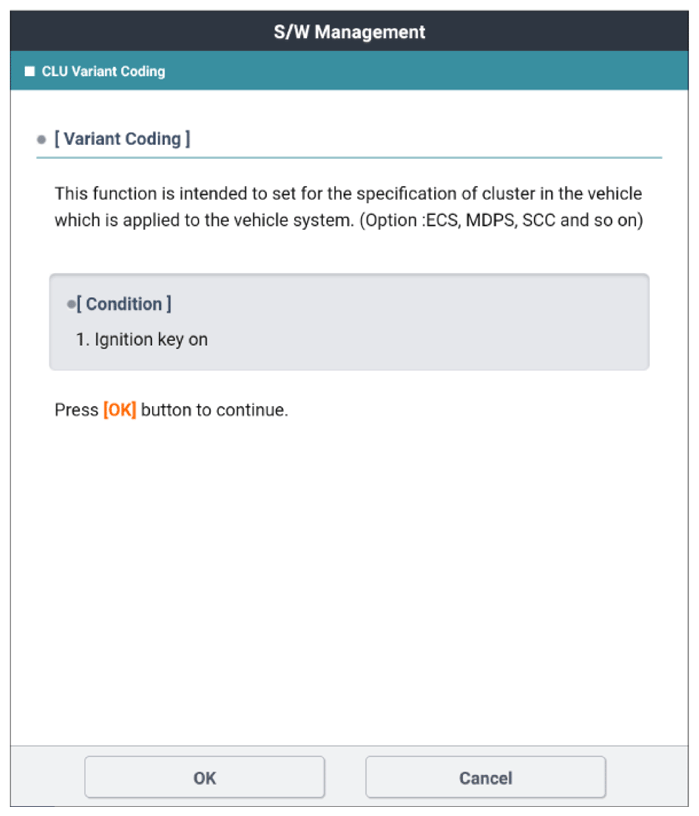

G16429625Courtesy of KIA MOTORS AMERICA, INC.

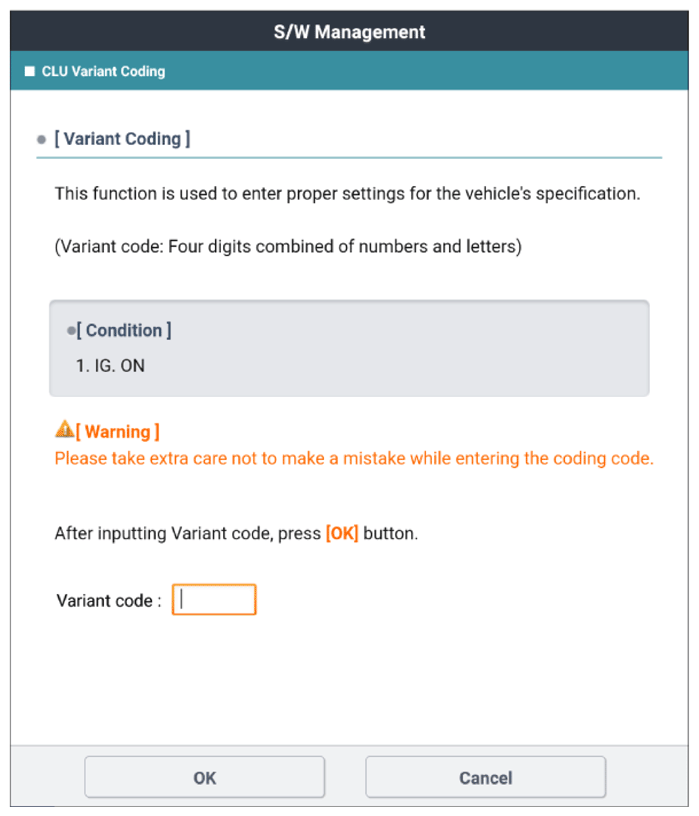

G16429626Courtesy of KIA MOTORS AMERICA, INC.
G16429627Courtesy of KIA MOTORS AMERICA, INC.
