Monitor DTC Status
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
| 1. Ignition "ON". | 1. Connect KDS to "Data Link Connector (DLC)". 2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS. |

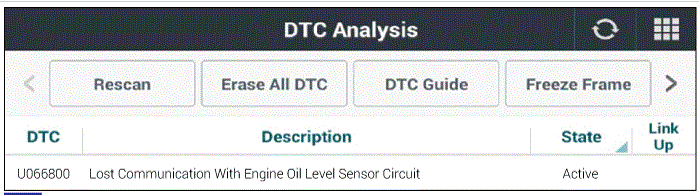

Fig.1 |
Active Fault
• Go to ("Wiring Inspection ") procedure.
History/Pending Fault
• Go to ("Verification Of Repair ") procedure.
