Removal And Installation: Removal: Buzzer

  1. Remove the front bumper assembly.

    (Refer to Body -  "FRONT BUMPER ASSEMBLY ")

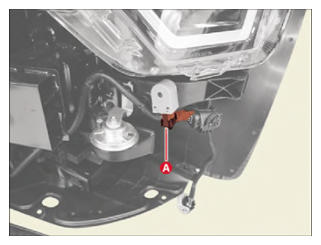

  2. Disconnect the buzzer connector (A).
    G15790647Courtesy of KIA MOTORS AMERICA, INC.

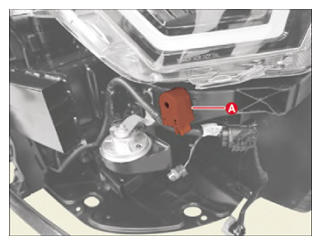

  3. Remove the buzzer (A).
G15790648Courtesy of KIA MOTORS AMERICA, INC.
