Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5 below

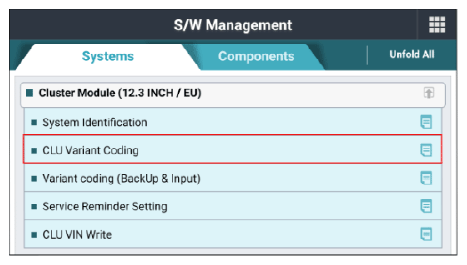

G15804222Courtesy of KIA MOTORS AMERICA, INC.

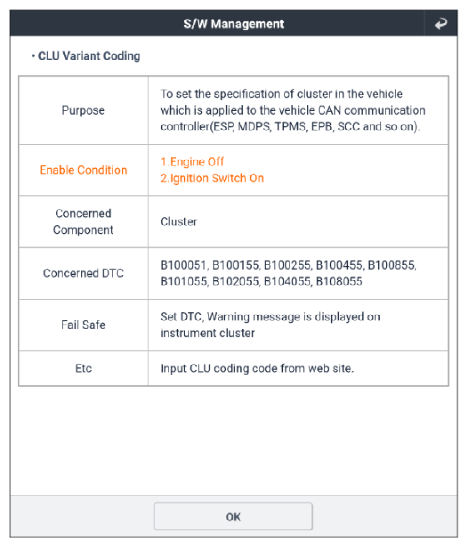

G15804223Courtesy of KIA MOTORS AMERICA, INC.

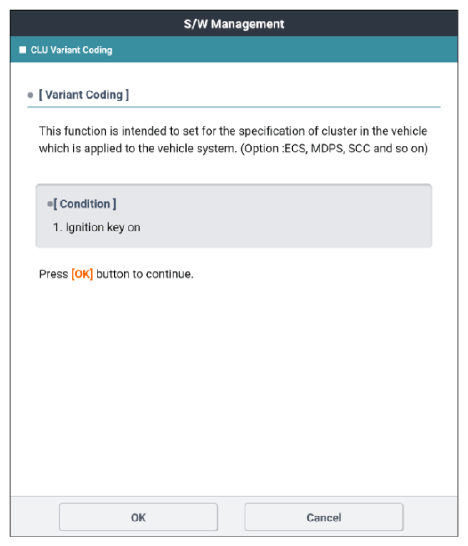

G15804224Courtesy of KIA MOTORS AMERICA, INC.

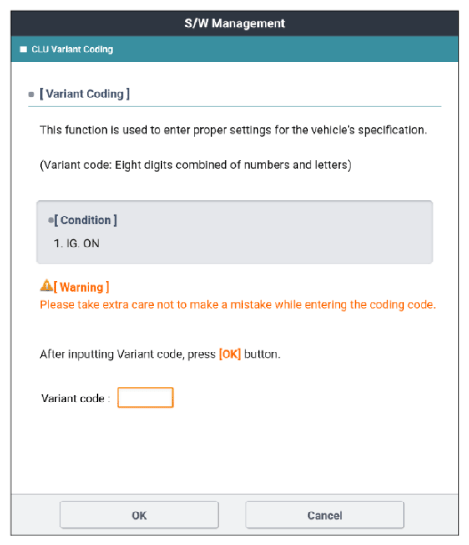

G15804225Courtesy of KIA MOTORS AMERICA, INC.
G15804226Courtesy of KIA MOTORS AMERICA, INC.
