Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 5

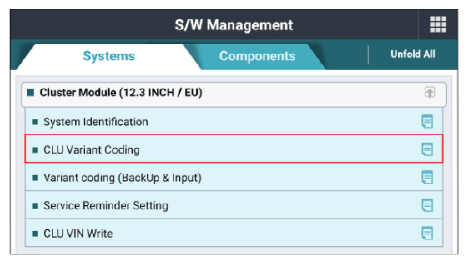

G15778610Courtesy of KIA MOTORS AMERICA, INC.

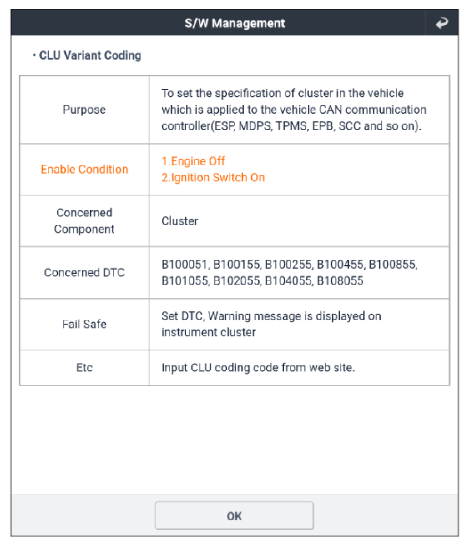

G15778611Courtesy of KIA MOTORS AMERICA, INC.

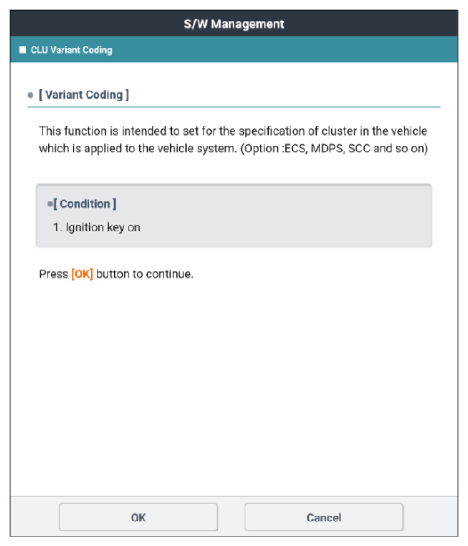

G15778612Courtesy of KIA MOTORS AMERICA, INC.

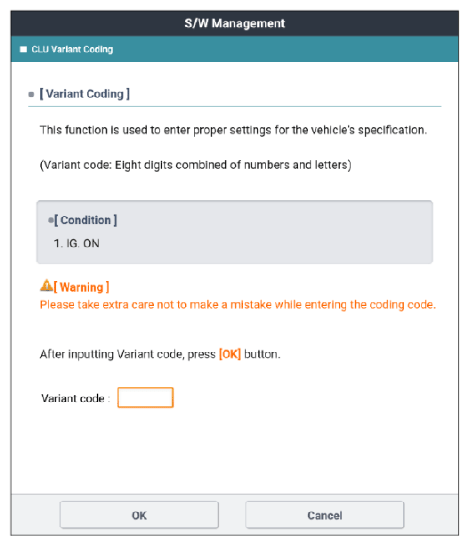

G15778613Courtesy of KIA MOTORS AMERICA, INC.
G15778614Courtesy of KIA MOTORS AMERICA, INC.
