Components And Components Location: Component

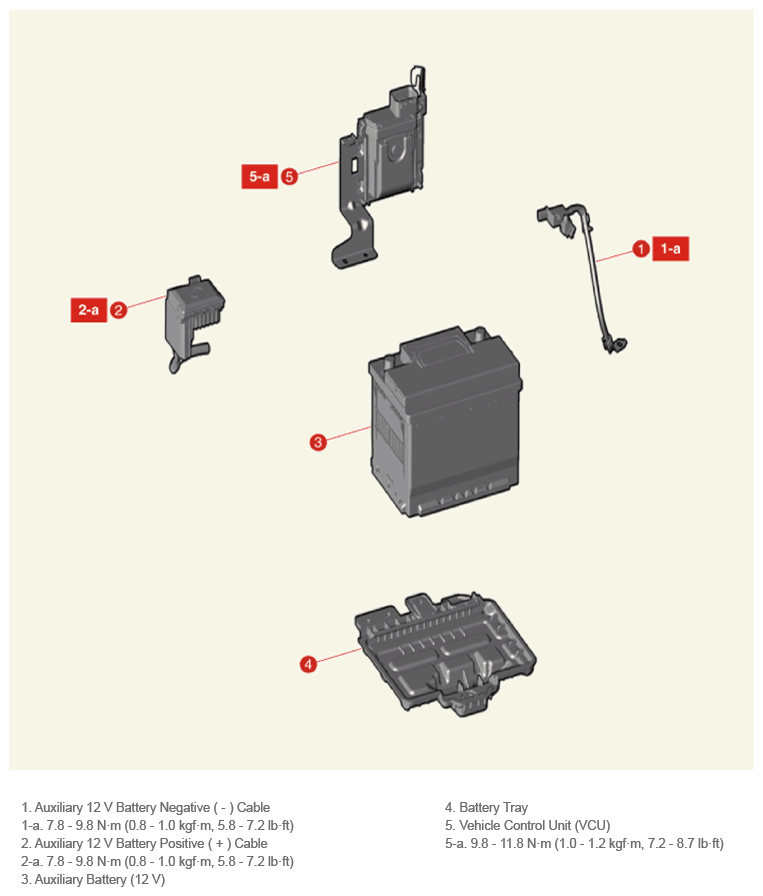

Fig 1: Vehicle Control Unit Components Location With Torque Specification

G15903246

Courtesy of KIA MOTORS AMERICA, INC.
