Removal And Installation: Installation

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit. Refer To HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION
When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure. Refer To HIGH VOLTAGE SHUT-OFF PROCEDURES

Install in reverse order of removal.

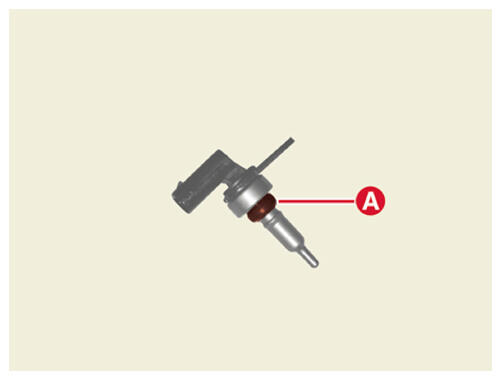

NOTE: The existing oil temperature sensor O-ring (A) must be replaced with a new one (do not reuse).

Courtesy of KIA MOTORS AMERICA, INC.
Refill the motor and reduction gear with oil.
(Refer to Motor and Reduction Gear System - " MOTOR AND REDUCTION GEAR OIL ")
