Component And Component Location

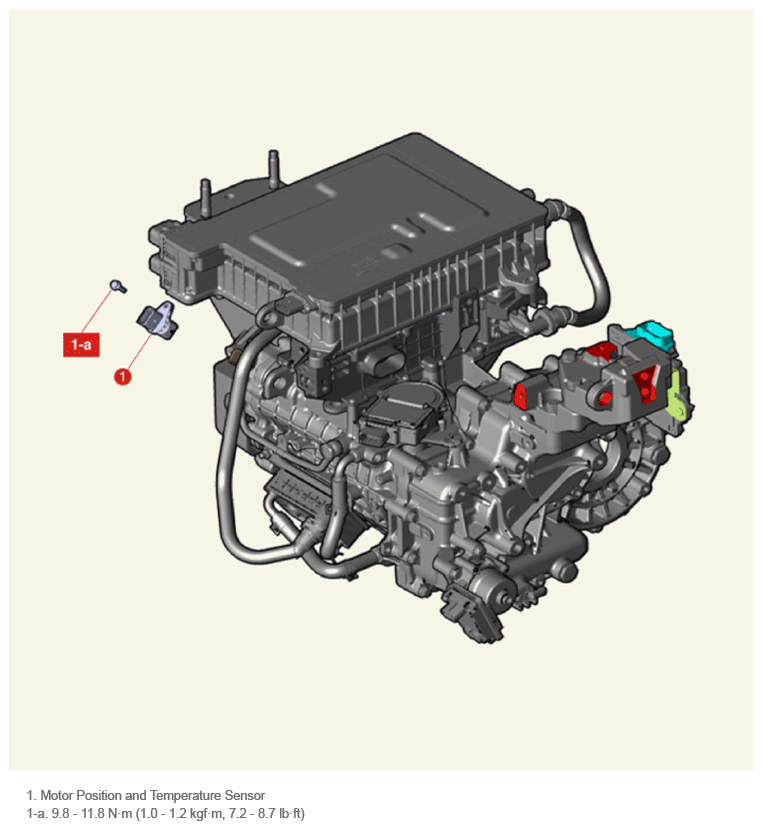

Fig 1: Motor Position And Temperature Sensor Component Location With Torque Specification

G15903209

Courtesy of KIA MOTORS AMERICA, INC.
