Vehicle S/W Management

Vehicle S/W Management Inspection Procedure Reference
1. Ignition "ON". 1. Connect KDS to Data Link Connector (DLC).
2. Perform "Vehicle S/W Management" of concerned component with KDS.		 Fig.1 to 5

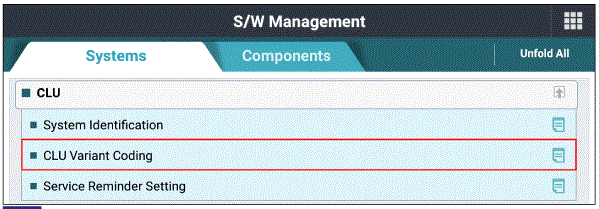

G00659886Courtesy of KIA MOTORS AMERICA, INC.

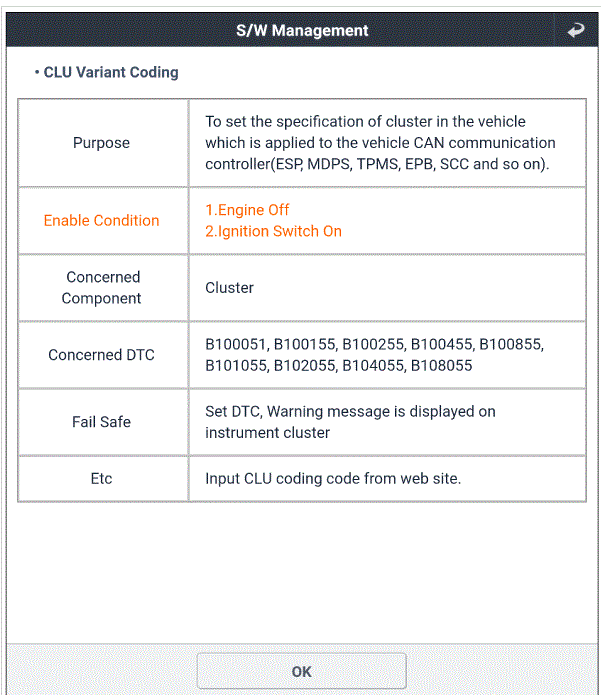

G00659887Courtesy of KIA MOTORS AMERICA, INC.

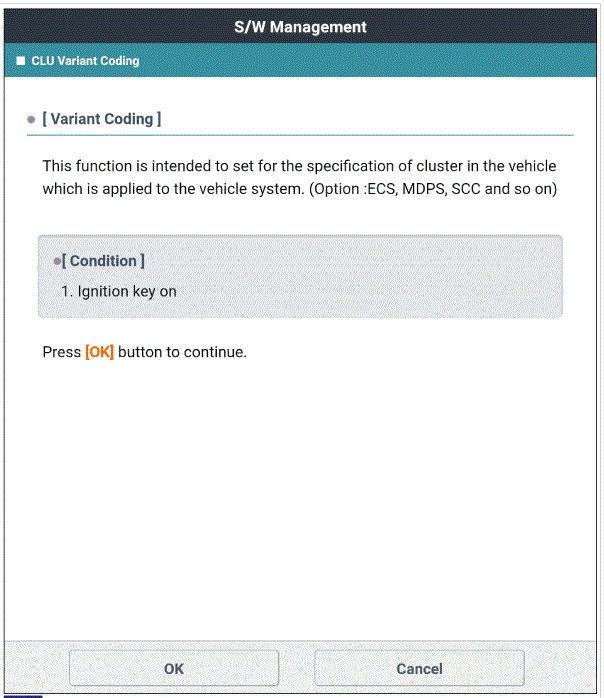

G00659888Courtesy of KIA MOTORS AMERICA, INC.

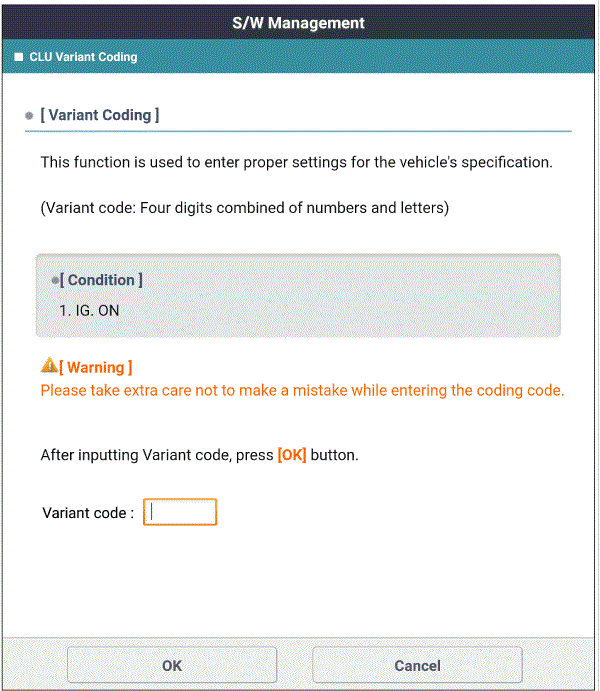

G00659889Courtesy of KIA MOTORS AMERICA, INC.

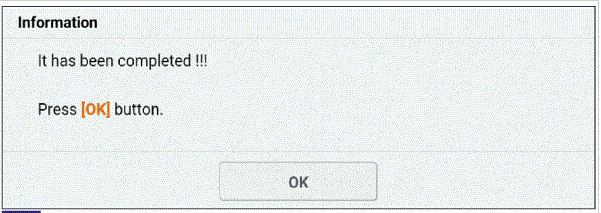

G00659890Courtesy of KIA MOTORS AMERICA, INC.
