Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference
1. Ignition "ON".	1. Connect KDS to Data Link Connector (DLC). 2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Fig.1

G00659850

Courtesy of KIA MOTORS AMERICA, INC.

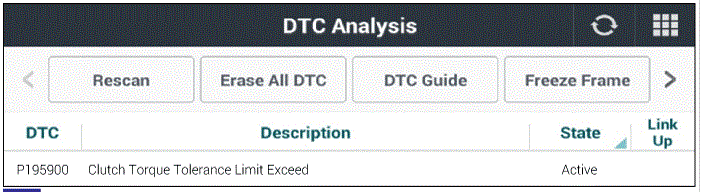

Fig.1) DTC status

Active Fault

• Go to "Wiring Inspection " procedure.

History/Pending Fault

• Go to "Verification Of Repair " procedure.
