Monitor DTC Status

Inspection Condition Inspection Procedure Reference

  1. Ignition "ON".

  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

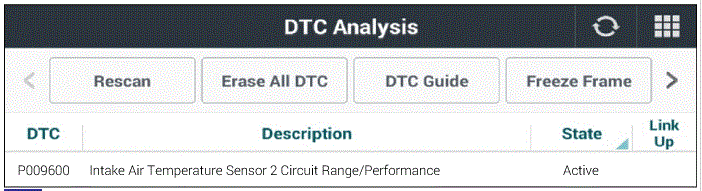

 Fig.1
G00659692Courtesy of KIA MOTORS AMERICA, INC.

Fig.1) DTC status

Active Fault

• Go to "Monitor KDS Data" procedure.

History/Pending Fault

• Go to "Verification of Repair" procedure.
