Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

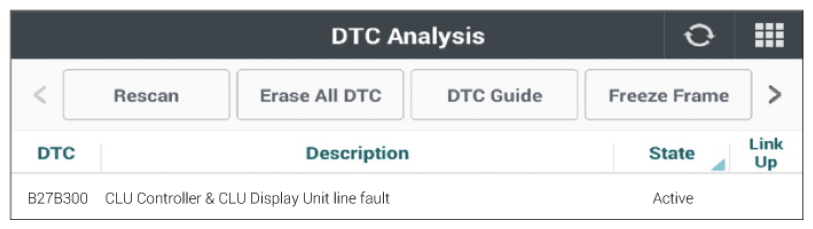

 Fig. 1
G16884618Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
