Monitor DTC Status

Inspection Condition	Inspection Procedure	Reference

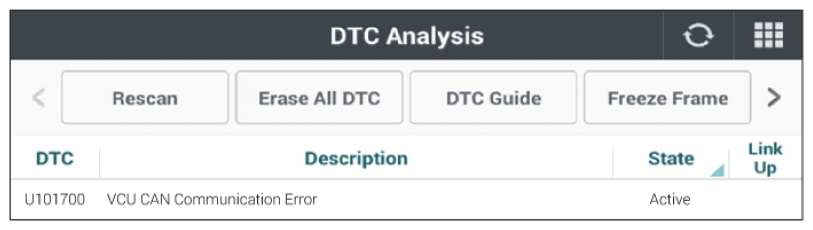

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Fig. 1

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of 12V battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
