Components And Components Location: Component

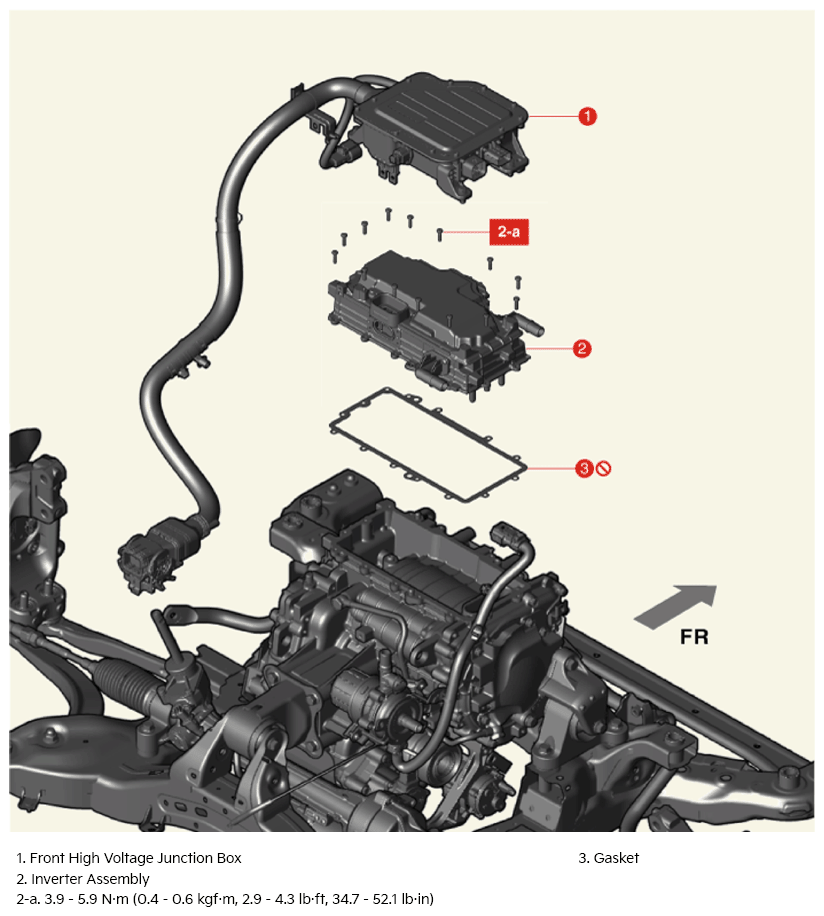

Fig 1: Inverter Assembly Components Location With Torque Specifications (4WD)

G16898026

Courtesy of KIA MOTORS AMERICA, INC.
