Function Activation Via Wire Connection Of The Kds

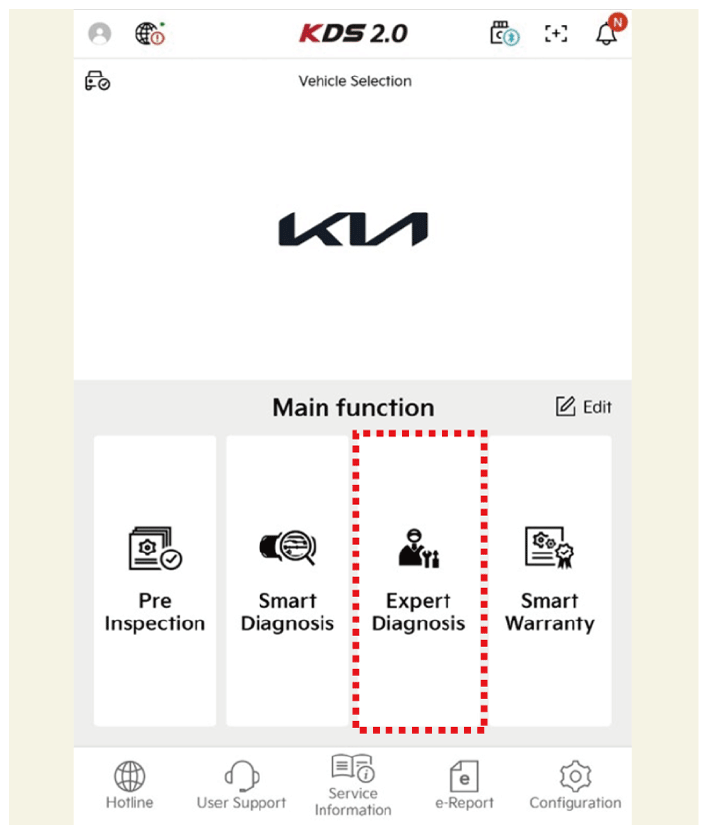

Enter 'Digital features (Upgrades) set up' with the KDS.

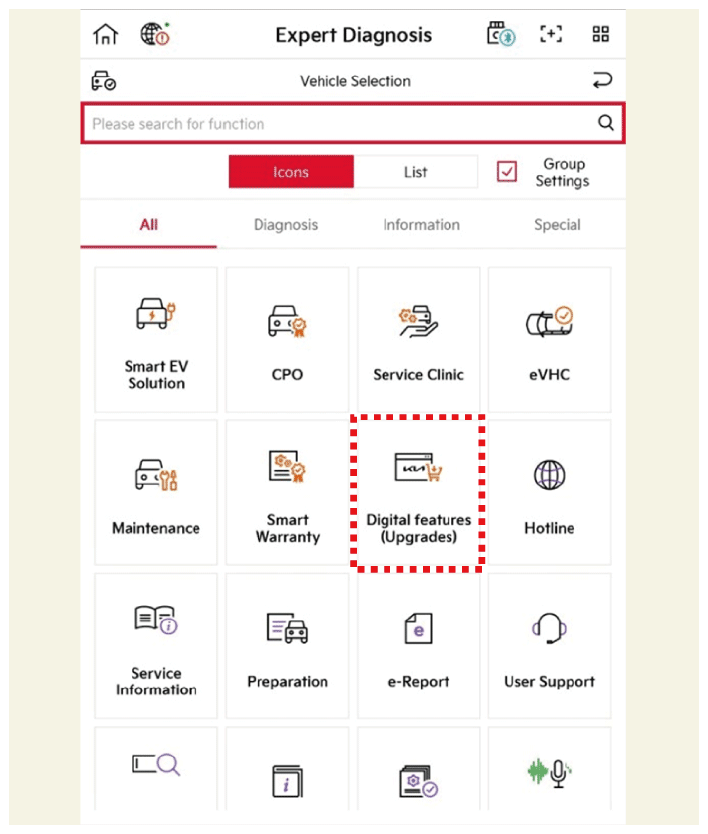

(Expert Diagnosis → S/W Management → Integrated LED Headlamp Control Unit_LH → Digital features (Upgrades) set up)

Information

Refer to the KDS screen for operating conditions and details

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
Depending on whether to replace the controller, check 'ECU Replacement Status' and click the 'OK'.
Check the purchase list, and if the items you want to set are correct, click 'OK' to proceed with activation.
Check whether the Digital features (Upgrades) setting was successful.

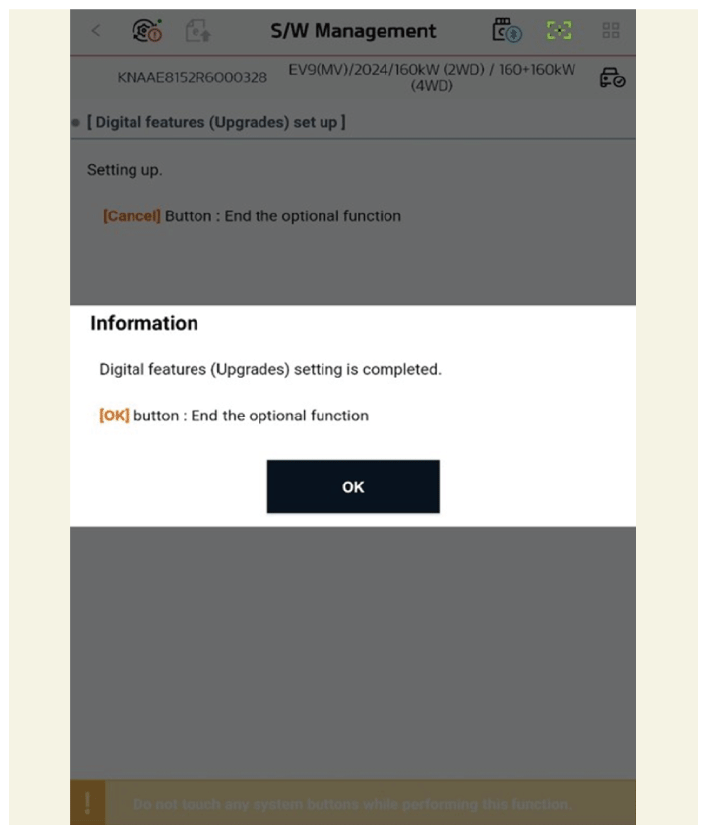

[Activation successful]

Courtesy of KIA MOTORS AMERICA, INC.

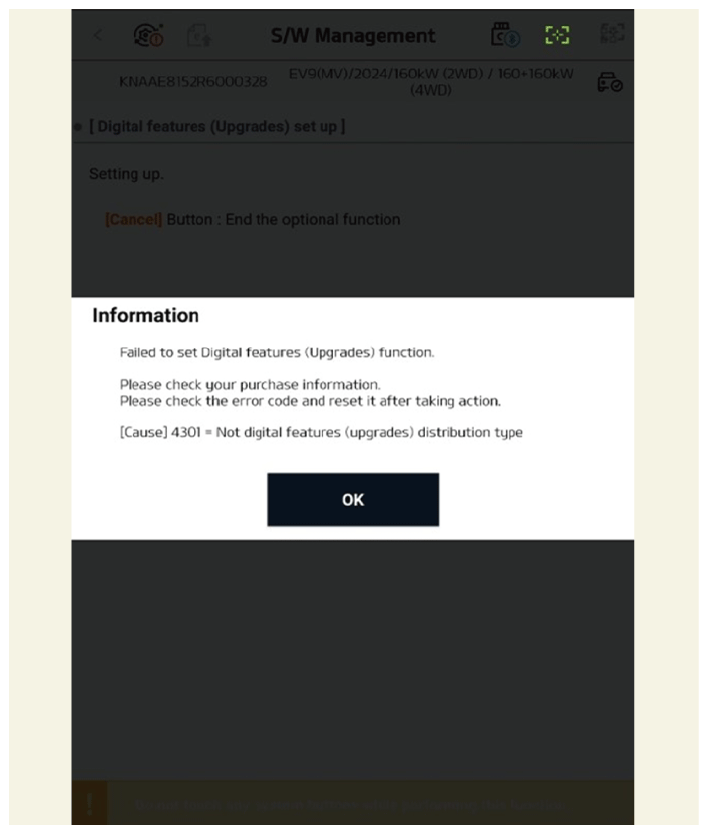

[Activation failed]

Courtesy of KIA MOTORS AMERICA, INC.
If cable activation fails, check the related controller.
(Refer to Body - " BODY DOMAIN CONTROL UNIT ")
If the controller is repaired or replaced, start the vehicle and proceed with remote activation according to the installation pop-up guided by AVNT.
NOTE:
If remote activation fails, repeat the procedure through cable activation.
