Component Inspection: Notes
| Inspection Item | Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | |||
| Oscilloscope inspection (Hood Latch, Hood Actuator) |
|

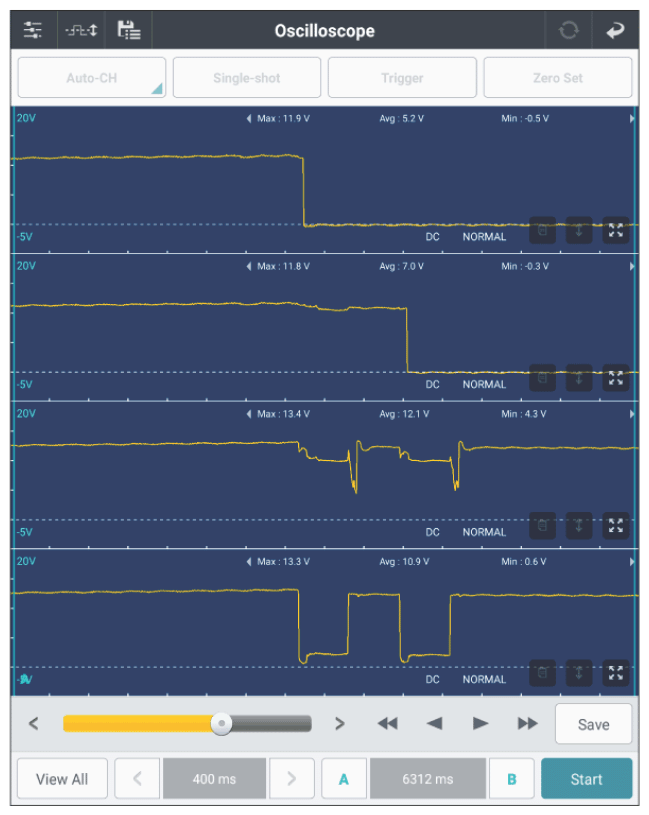

Hood Latch connector | 3 (Hood Open/Close Switch #1) | Hood Latch connector | 6 (Hood Open/Close Switch #2) | Fig. 1 |
| Hood Actuator connector | 1 (FWD) | Hood Actuator connector | 2 (BWD) | |||
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of 12V battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair as necessary and then Go to "VERIFICATION OF REPAIR " procedure.
