How To Check/Adjust Front Radar Installation Angle - Stop Mode

NOTE:

Check for vehicle alignment and tire pressure for accurate radar calibration.
Put the vehicle on the level ground.
Check that the front surface of the front radar is clean.

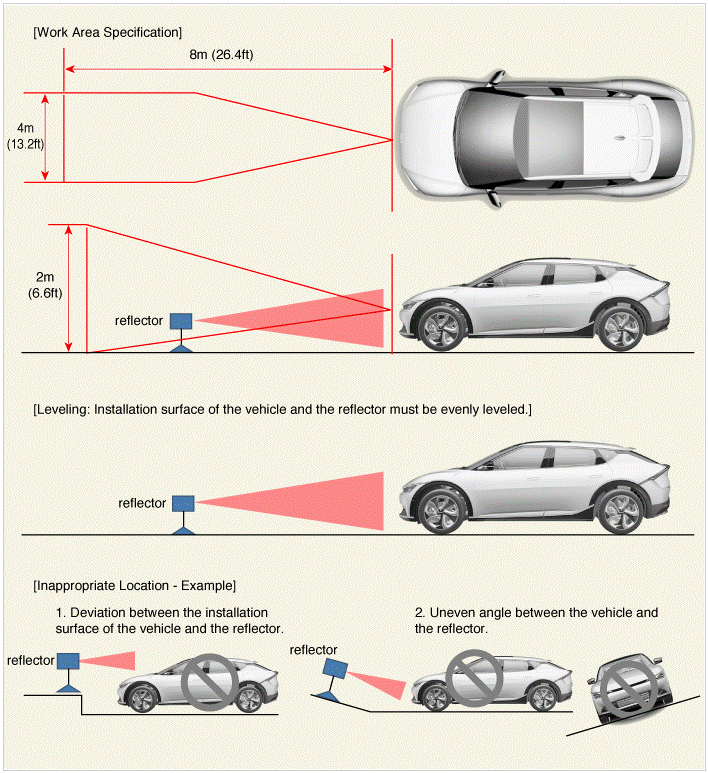

Perform in an area with minimum clearance of 8 m (26.4 ft) front, 4 m (13.2 ft) sides, and 2 m (6.6 ft) above the vehicle.
The reflector has to be installed at same place (height and angle) as front radar center. (If height and angle are different, then adjustment can not be done correctly.)
Remove objects (metal plates, resins, etc.) that may cause electric signal interference from the area where front radar alignment is performed.
Be sure that the vehicle is not moved and free from vibration when performing front radar alignment (getting in/out or opening/closing doors).
When performing front radar alignment, the ignition has to be in the ON position (not in Ready mode).

Park the vehicle on a flat ground.

Courtesy of KIA MOTORS AMERICA, INC.

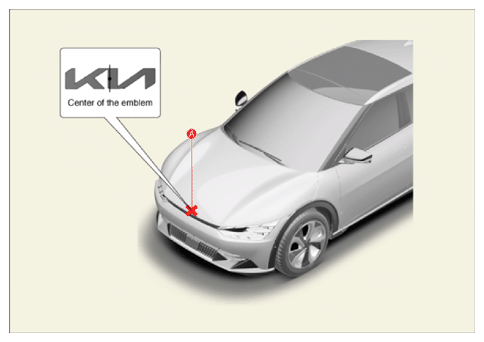

Mark the center point of emblem (A).

Courtesy of KIA MOTORS AMERICA, INC.

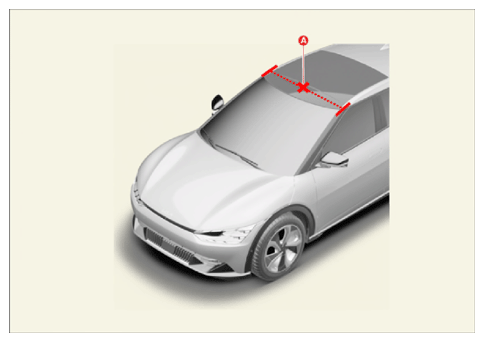

Mark the center point (A) after measuring the distance on top of the windshield glass.

Courtesy of KIA MOTORS AMERICA, INC.
Mount the SCC setting beam (09964 - C1200) on the front radar setting tripod (09964 - C1300).

Courtesy of KIA MOTORS AMERICA, INC.

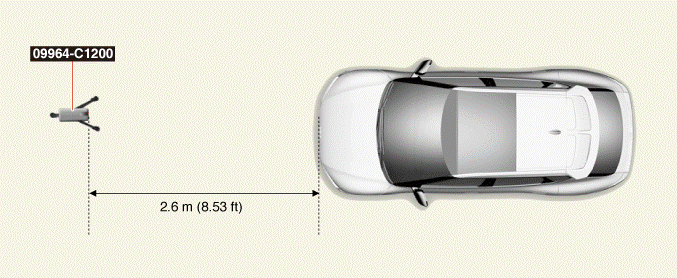

Place the SCC setting beam (09964 - C1200) at 2.6 m (8.53 ft) away from the front of the vehicle.

Courtesy of KIA MOTORS AMERICA, INC.

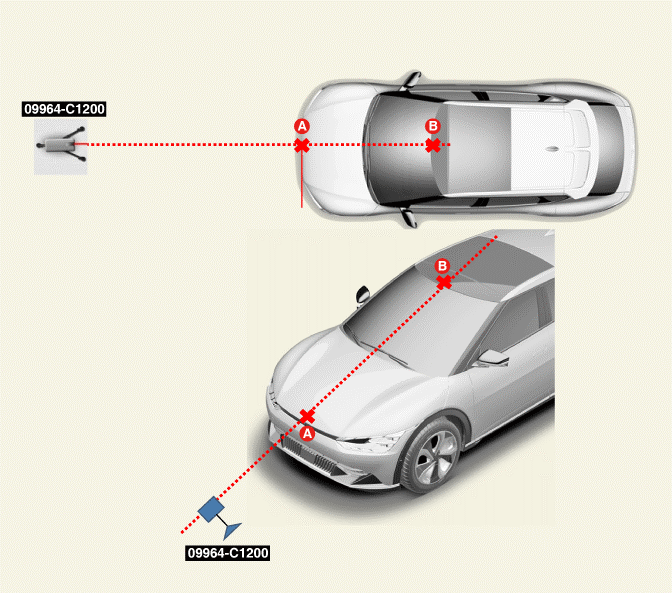

Match the vertical line of laser to (A) and (B) using the SCC setting beam (09964 - C1200)

Courtesy of KIA MOTORS AMERICA, INC.

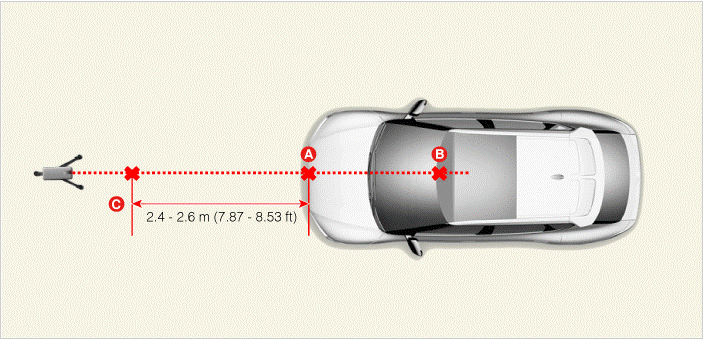

Mark the location (C) at 2.4 - 2.6 m (7.87 - 8.53 ft) away from (A) in front of the vehicle.

Courtesy of KIA MOTORS AMERICA, INC.

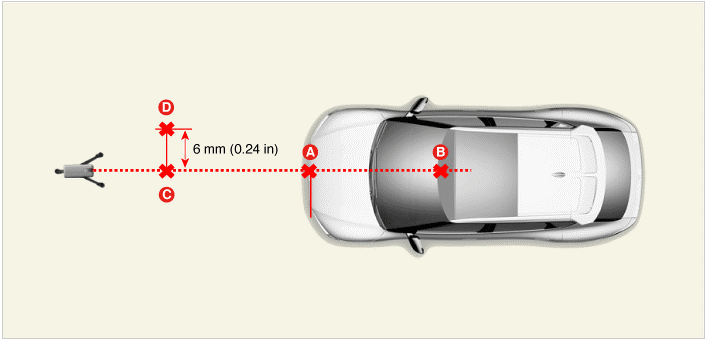

Mark the location (D) as shown below at 6 mm (0.24 in) away from (C) to the left (passenger side) of the vehicle.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the SCC setting beam (09964 - C1200) from the front radar setting tripod (09964 - C1300).

Courtesy of KIA MOTORS AMERICA, INC.

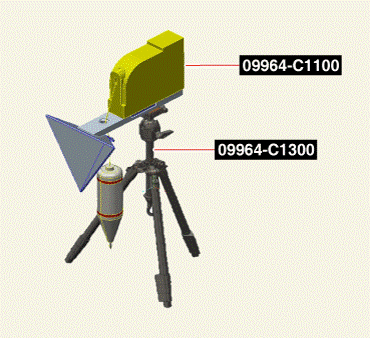

Mount the front radar setting reflector (09964 - C1100) to the front radar setting tripod (09964 - C1300).

Courtesy of KIA MOTORS AMERICA, INC.

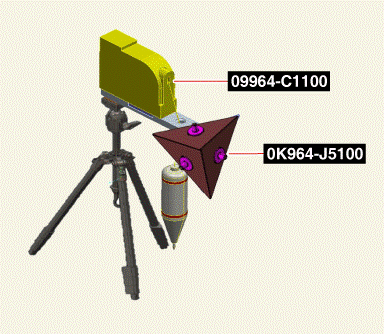

Mount the calibration reflector (0K964 - J5100) to the front radar setting reflector (09964 - C1100).

Courtesy of KIA MOTORS AMERICA, INC.

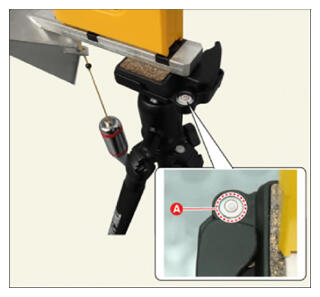

Set the reflector horizontal using the leveler (A) which is built in the front radar setting tripod (09964 - C1300).

Courtesy of KIA MOTORS AMERICA, INC.

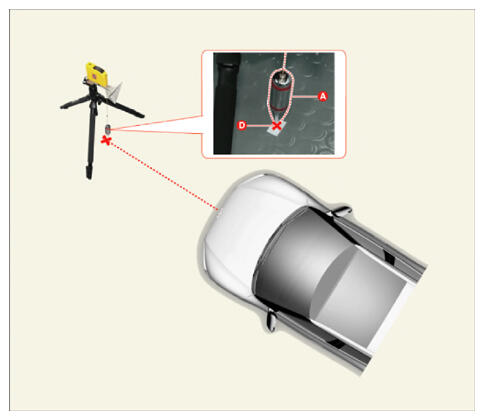

Align the plumb bob (A) of the front radar setting reflector (09964 - C1100) with the point (D).

Courtesy of KIA MOTORS AMERICA, INC.

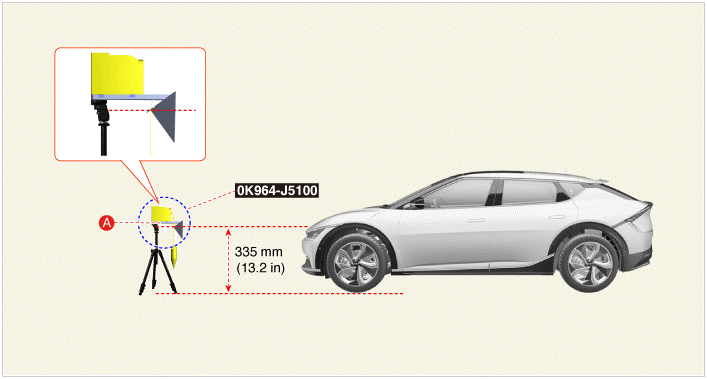

Set the height of the calibration reflector (0K964 - J5100) to 335 mm (13.2 in).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the plumb bob from the front radar setting reflector (09964 - C1100).
NOTE: If the plumb bob is not removed it can affect the adjustment.
Visually check again the front radar and the surface of front bumper for the following items.
NOTE:
- Make sure that there is no foreign or reflective objects on the surface of the radar.
- Make sure that there is no foreign or reflective objects on the radiator grille.

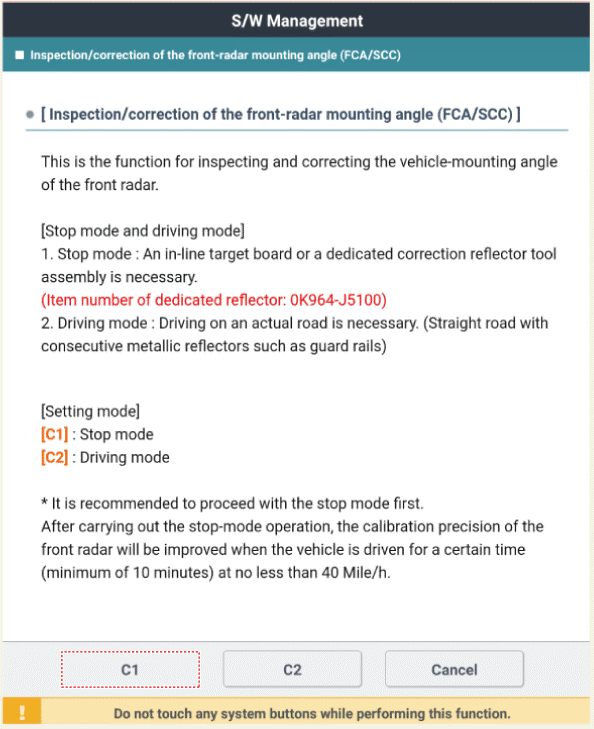

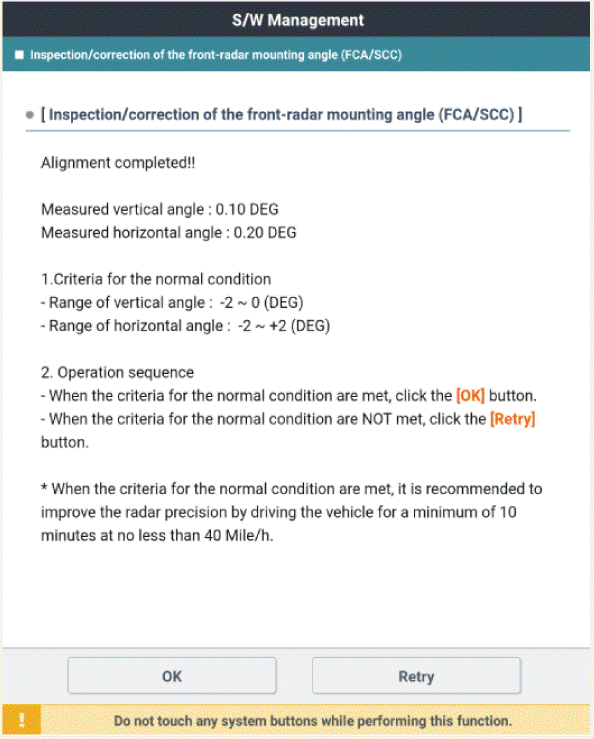

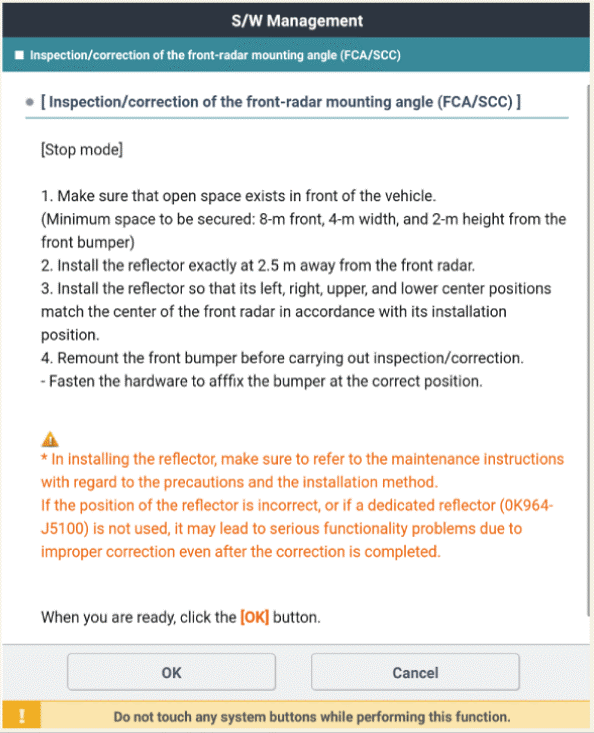

Select C1 (stop mode) and follow the procedure on KDS to inspect and adjust the front radar installation angle.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
In case of front radar inspection/correction failure, check the inspection/correction conditions.
