Home >> Kia >> 2023 >> Telluride EX X-Line >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (6 Of 13) >> DTC P02CD-00: Cylinder 1 Fuel Injector Offset Learning At Max Limit >> DTC Inspection >> Monitor DTC Status

Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

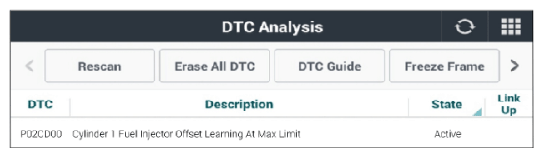

 Fig.1
G15725407Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
