Vehicle S/W Management

Inspection Condition Inspection Procedure Specification
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5
G15719084Courtesy of KIA MOTORS AMERICA, INC.

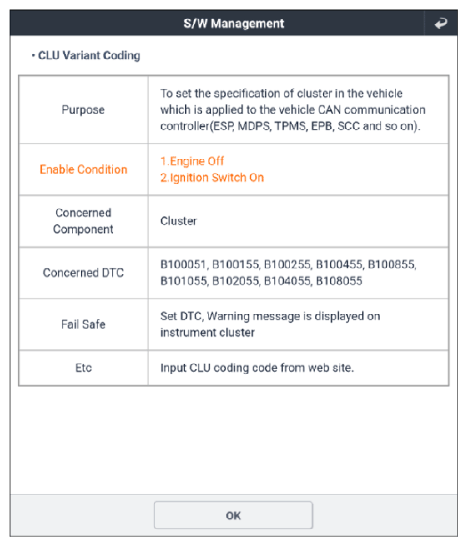

G15719085Courtesy of KIA MOTORS AMERICA, INC.

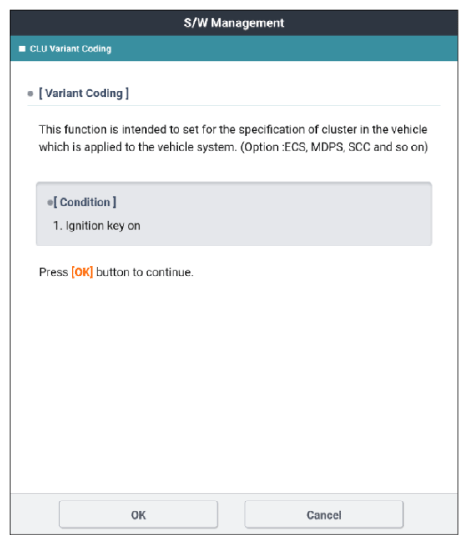

G15719086Courtesy of KIA MOTORS AMERICA, INC.

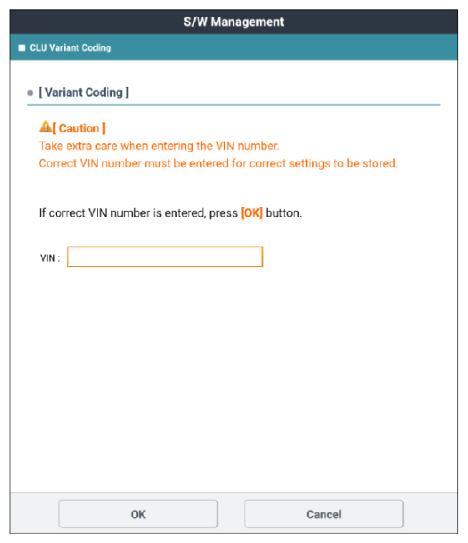

G15719087Courtesy of KIA MOTORS AMERICA, INC.
G15719088Courtesy of KIA MOTORS AMERICA, INC.
