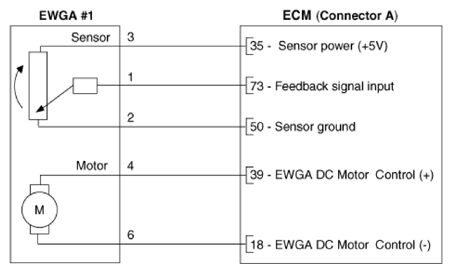

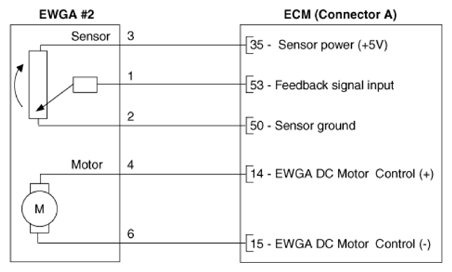

Home >> Kia >> 2023 >> Stinger GT2, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> Electric Waste Gate Actuator (EWGA) >> Schematic Diagrams >> Circuit Diagram >> Notes
