On-Line method on KDS

  1. Switch "OFF" ignition, and connect KDS.
  2. With ignition "ON" & Engine "OFF", select vehicle name and airbag system.
  3. Select Variant coding mode.
  4. Follow steps on the screen as below.

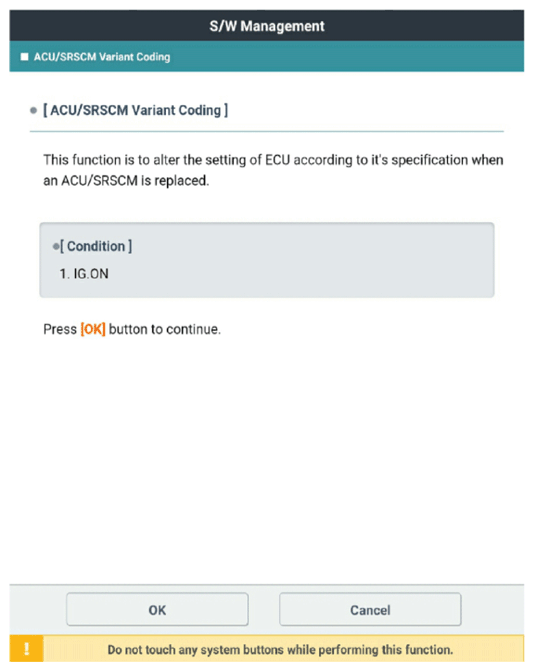

    1. Initial ACU Variant Coding
      G14996900Courtesy of KIA MOTORS AMERICA, INC.

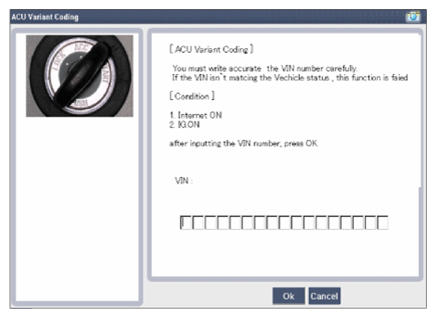

    2. Enter VIN Code
      G14996901Courtesy of KIA MOTORS AMERICA, INC.

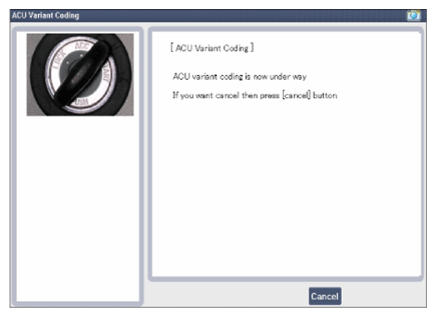

    3. Processing variant coding - 1
      G14996902Courtesy of KIA MOTORS AMERICA, INC.

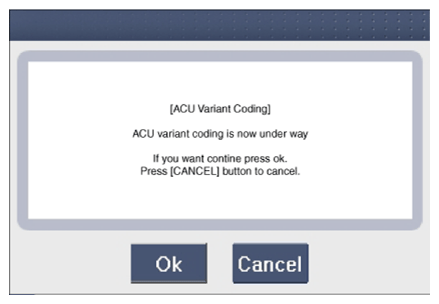

    4. Processing variant coding - 2
      G14996903Courtesy of KIA MOTORS AMERICA, INC.

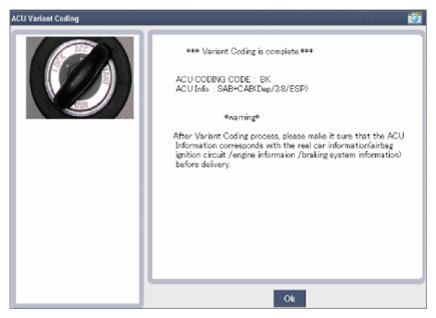

    5. Variant coding is completed
    G14996904Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

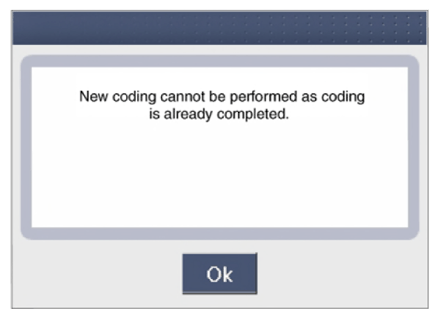

    1. This screen is displayed when the variant coding is attempted again on the SRSCM that has already performed variant coding.
      G14996905Courtesy of KIA MOTORS AMERICA, INC.

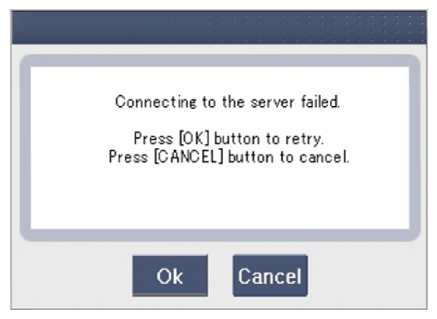

    2. Communication failure
    G14996906Courtesy of KIA MOTORS AMERICA, INC.
