Repair Procedures: Installation

NOTE:
  • Install the Rail Pressure Sensor (RPS) with the specified torque.
  • If RPS is dropped, it may cause internal damage. Do not use it.
  1. Install in the reverse order of removal.

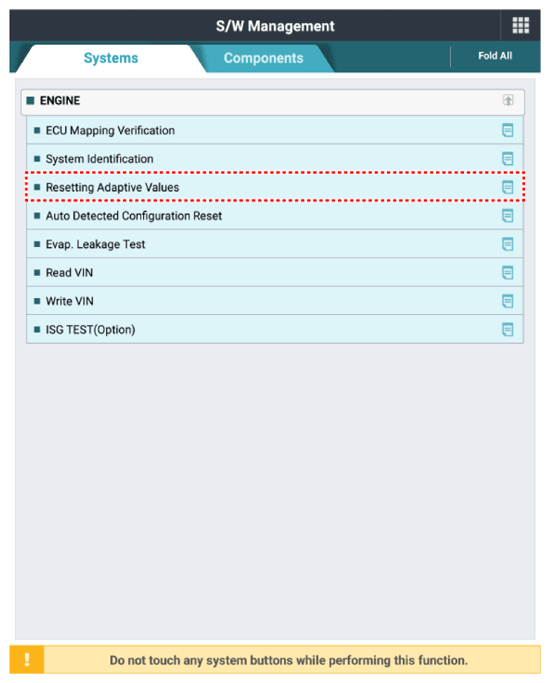

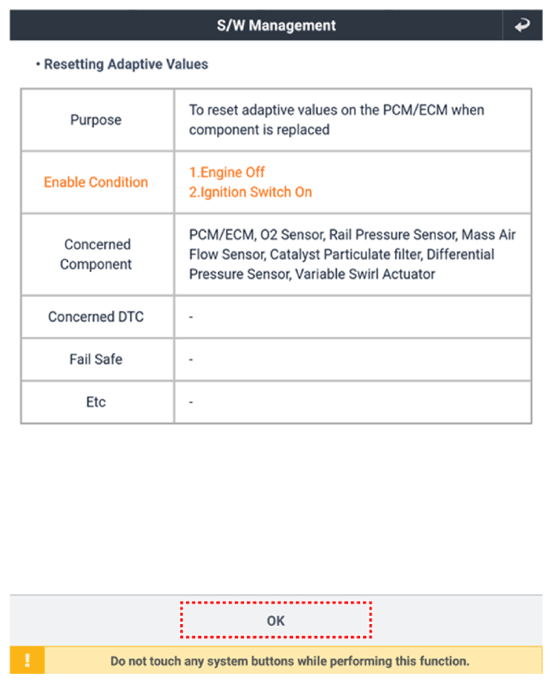

  2. Reset the adaptive values using a KDS.
G14990982Courtesy of KIA MOTORS AMERICA, INC.
G14990983Courtesy of KIA MOTORS AMERICA, INC.
