[Fuel Sender]
- Turn the ignition switch OFF and Disconnect the battery negative (-) terminal.
- Remove the fuel pump assembly.
(Refer to Fuel Pump Module - "Removal ")

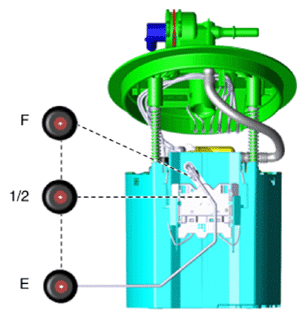

- Using an ohmmeter, measure the resistance between terminals 1 and 2 of sender connector (A) at each float level.
Pin No. Description 1 Fuel sender ground (-) 2 Fuel sender signal (+) 3 Fuel pump motor ground (-) 4 Fuel pump motor(W) 5 Fuel pump motor(V) 6 Fuel pump motor(U) - Check that the resistance is within the specification.
| Position | Resistance (Ω) | Capacity [l (U.S gal., U.S.qt., Imp.qt.)] |
|---|---|---|
| E | 141.6 - 145.4 | 3.0 (0.79, 6.3, 2.6) |
| 1/2 | 10.2 - 12.2 | 30.8 (8.1, 32.5, 27.1) |
| F | 6.5 - 8.5 | 58.5 (15.5, 61.8, 51.5) |
Information
Main-sub fuel sender total resistance
| Position | Resistance (Ω) | Capacity [l (U.S gal., U.S.qt., Imp.qt.)] |
|---|---|---|
| E | 296.1 - 303.9 | 3.0 (0.79, 6.3, 2.6) |
| 1/2 | 158.6 - 164.6 | 30.8 (8.1, 32.5, 27.1) |
| F | 13.0 - 17.0 | 58.5 (15.5, 61.8, 51.5) |
