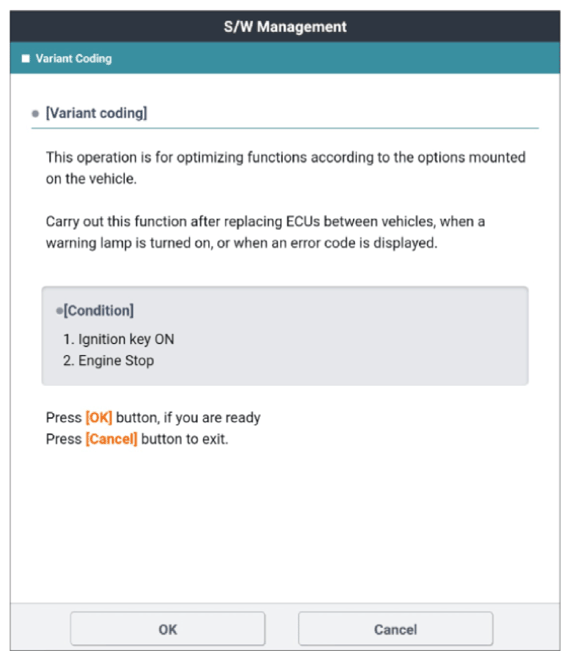

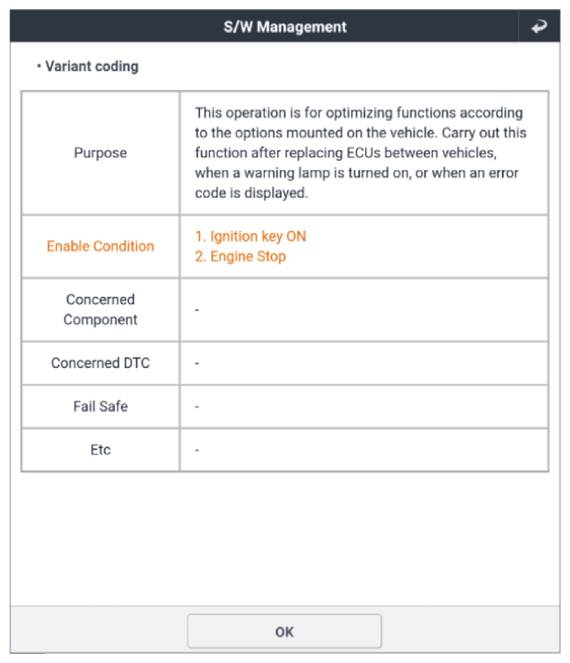

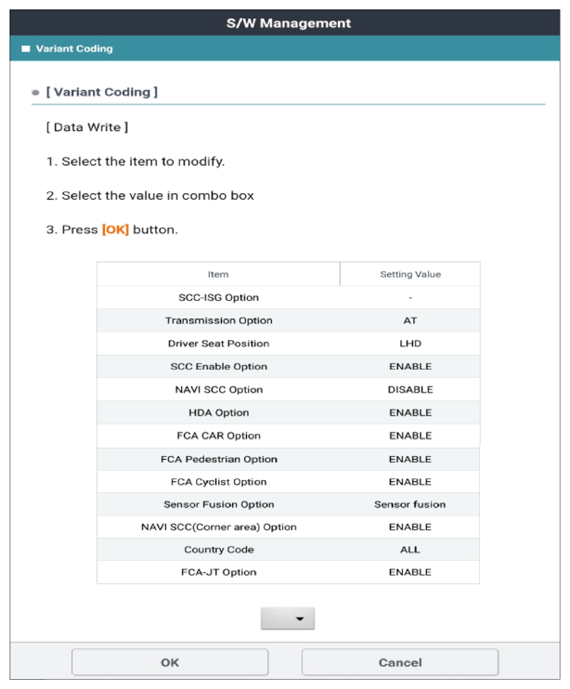

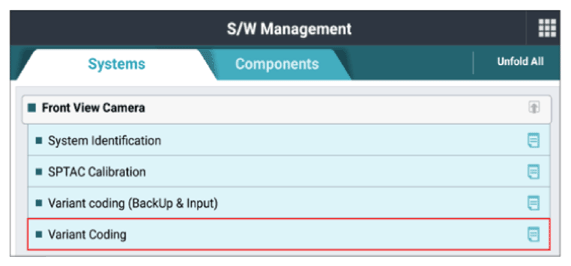

Where Variant coding is required

1. If the front camera is changed.
2. The C170246 code is expressed.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Fault might be caused by not performing variant coding after FR_CMR ECU replacement. Go to "Verification Of Repair " procedure.

No Good

• Carefully re-do this troubleshooting guide steps.
• If no problems were found with the circuits or connectors, replace the FR_CMR ECU and Go to "Verification Of Repair " procedure.

* In case of replacing FR_CMR, perform following "System Inspection" procedures.
