Liftgate Lock Module

  1. Remove the liftgate lid trim.

    (Refer to Body - " TAILGATE TRIM  ")

  2. Disconnect the connector from the liftgate lid latch.

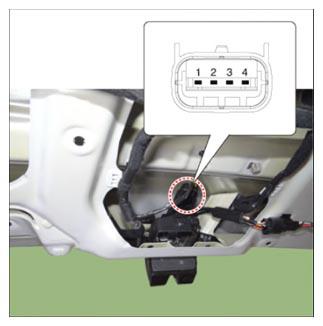

    G15716879Courtesy of KIA MOTORS AMERICA, INC.
  3. Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.

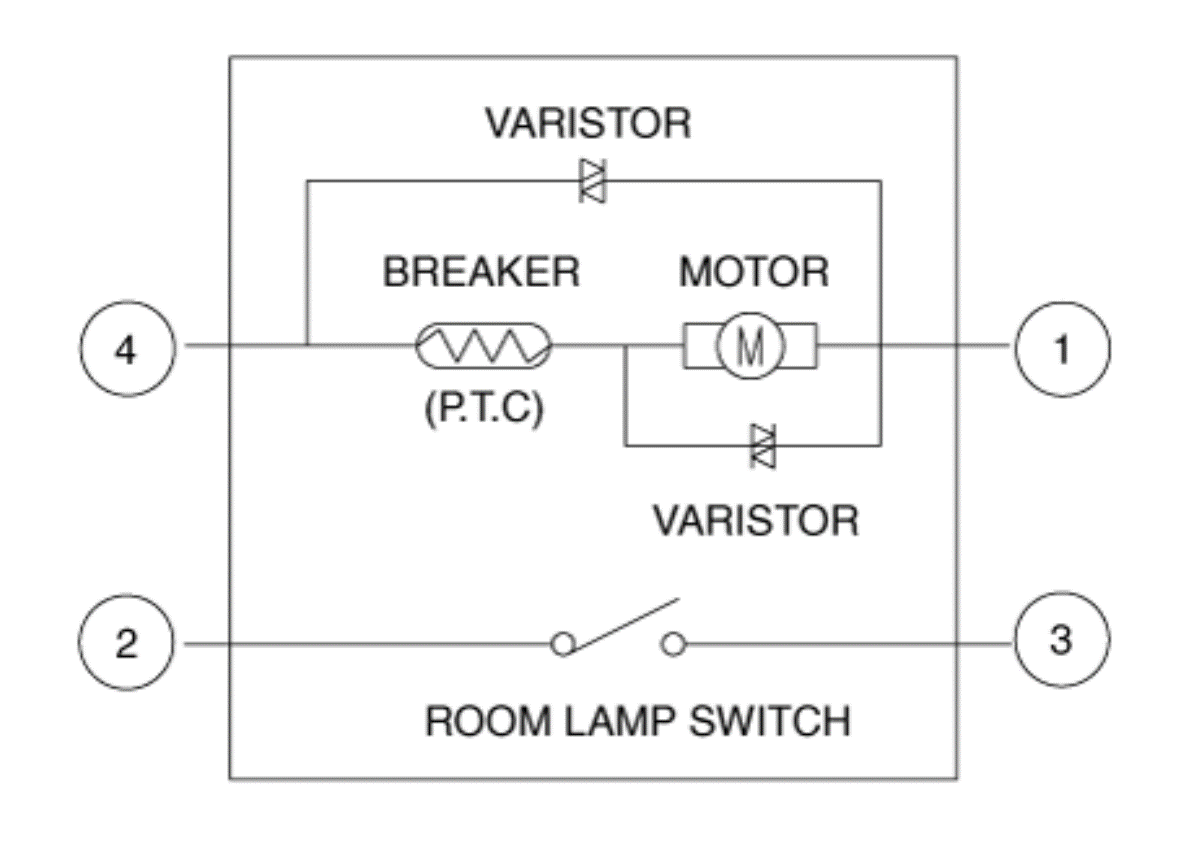

G15716880Courtesy of KIA MOTORS AMERICA, INC.
Operation/Terminals. Lock → Lock Unlock → Lock
4 - x
1 + x
2 OFF → ON ON → OFF
3
