Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 10

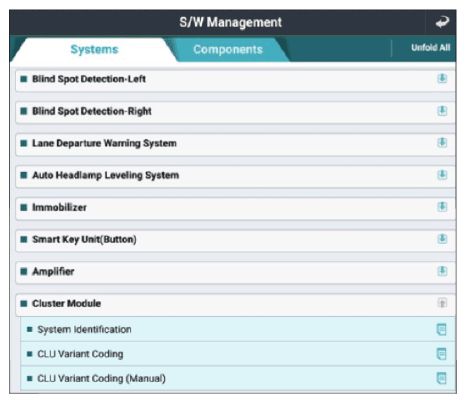

G15728391Courtesy of KIA MOTORS AMERICA, INC.

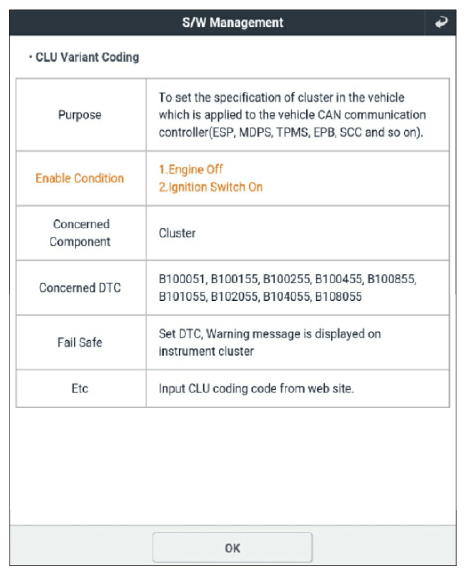

G15728392Courtesy of KIA MOTORS AMERICA, INC.

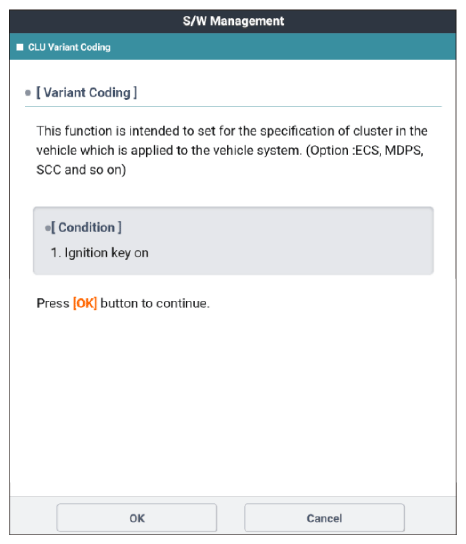

G15728393Courtesy of KIA MOTORS AMERICA, INC.

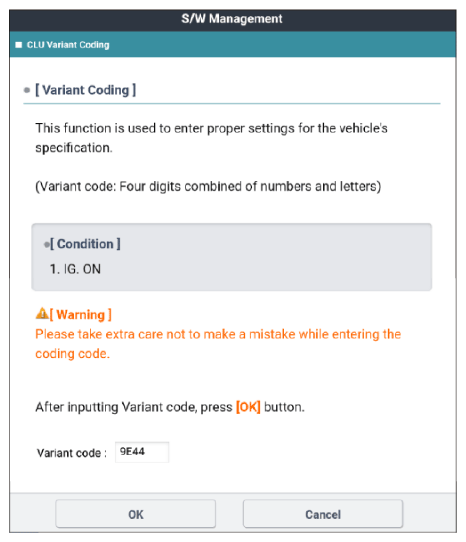

G15728394Courtesy of KIA MOTORS AMERICA, INC.
G15728395Courtesy of KIA MOTORS AMERICA, INC.

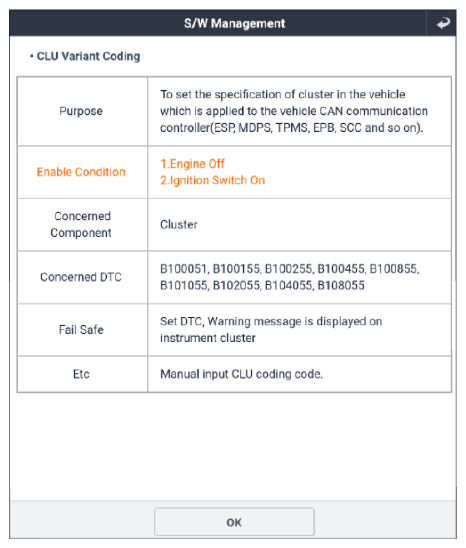

G15728396Courtesy of KIA MOTORS AMERICA, INC.

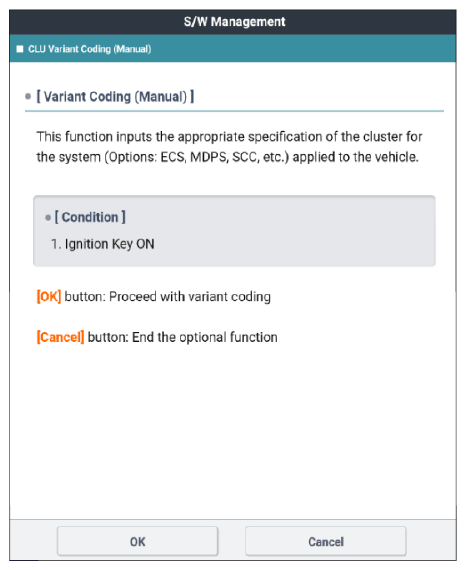

G15728397Courtesy of KIA MOTORS AMERICA, INC.

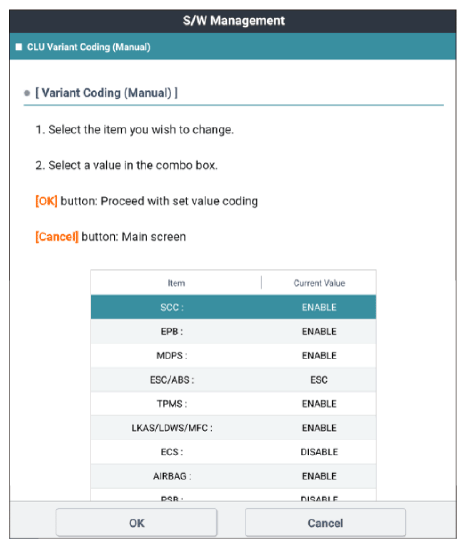

G15728398Courtesy of KIA MOTORS AMERICA, INC.

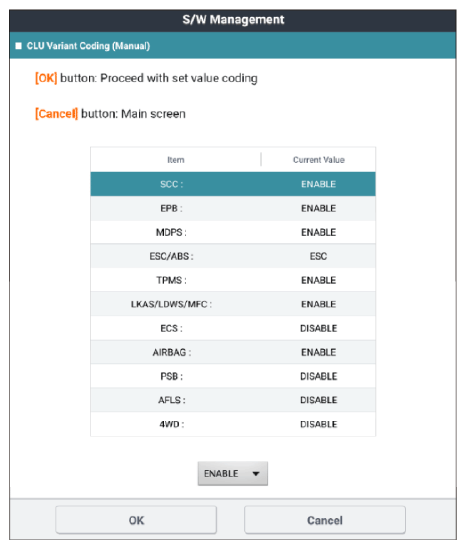

G15728399Courtesy of KIA MOTORS AMERICA, INC.
G15728400Courtesy of KIA MOTORS AMERICA, INC.
