Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

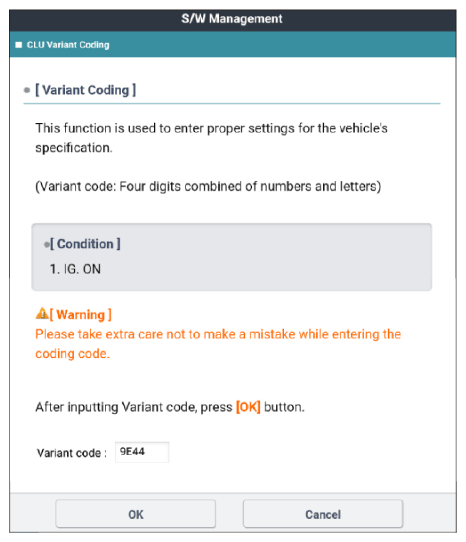

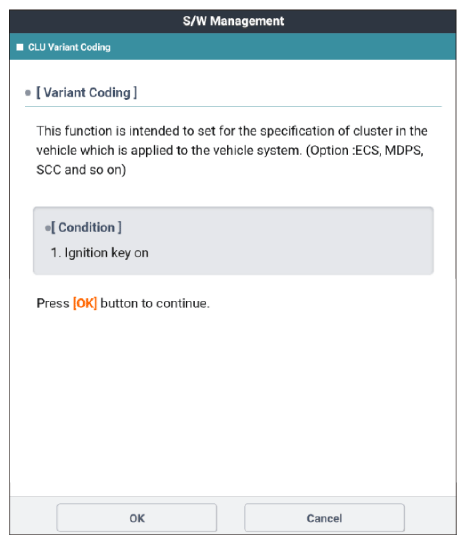

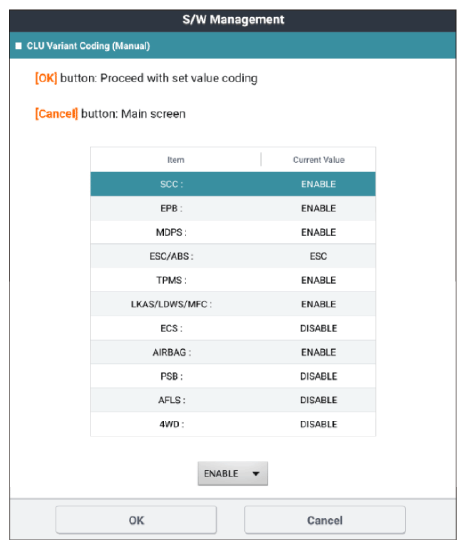

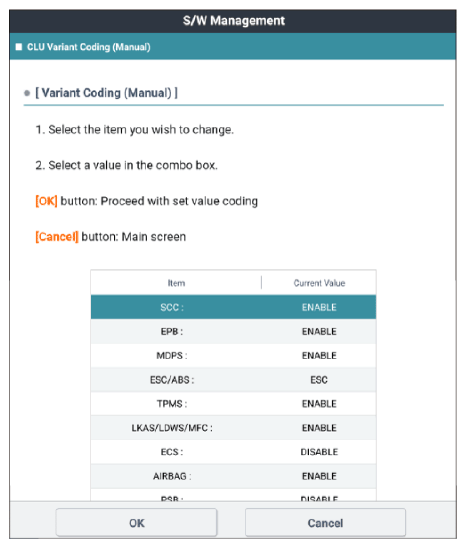

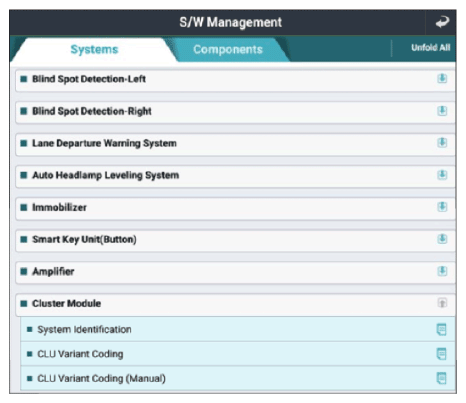

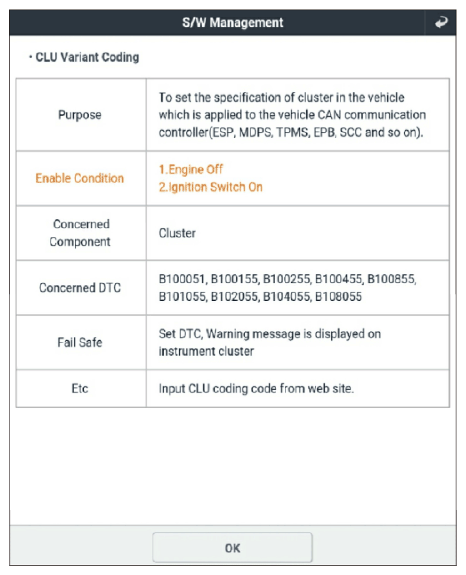

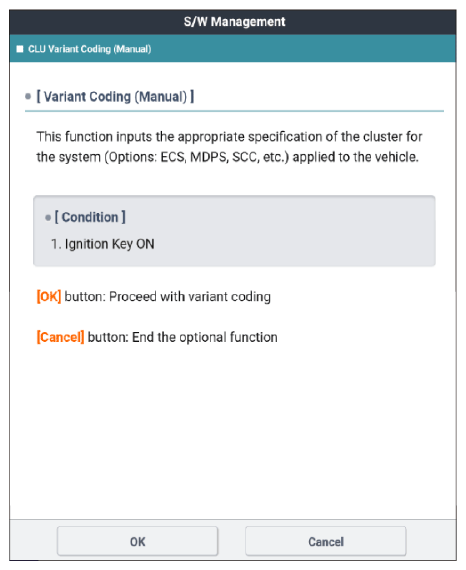

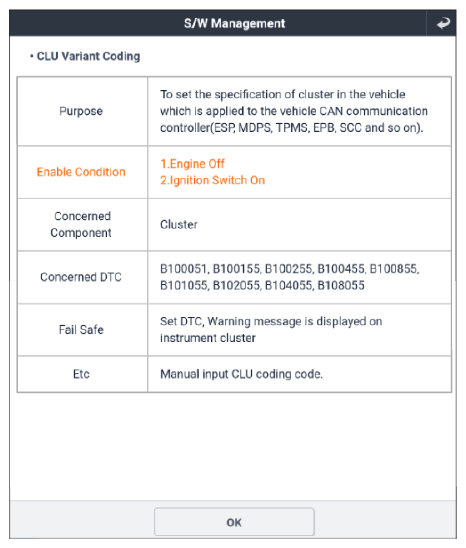

 Fig. 1 to 10
G15728367Courtesy of KIA MOTORS AMERICA, INC.
G15728368Courtesy of KIA MOTORS AMERICA, INC.
G15728369Courtesy of KIA MOTORS AMERICA, INC.
G15728370Courtesy of KIA MOTORS AMERICA, INC.
G15728371Courtesy of KIA MOTORS AMERICA, INC.
G15728372Courtesy of KIA MOTORS AMERICA, INC.
G15728373Courtesy of KIA MOTORS AMERICA, INC.
G15728374Courtesy of KIA MOTORS AMERICA, INC.
G15728375Courtesy of KIA MOTORS AMERICA, INC.
G15728376Courtesy of KIA MOTORS AMERICA, INC.
