Connector Assembly Status Test

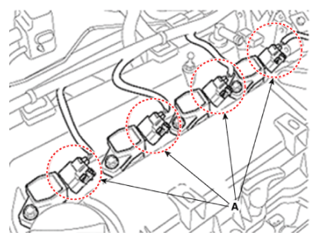

  1. Disconnect the connector (A) and reconnect it.
G15694362Courtesy of KIA MOTORS AMERICA, INC.

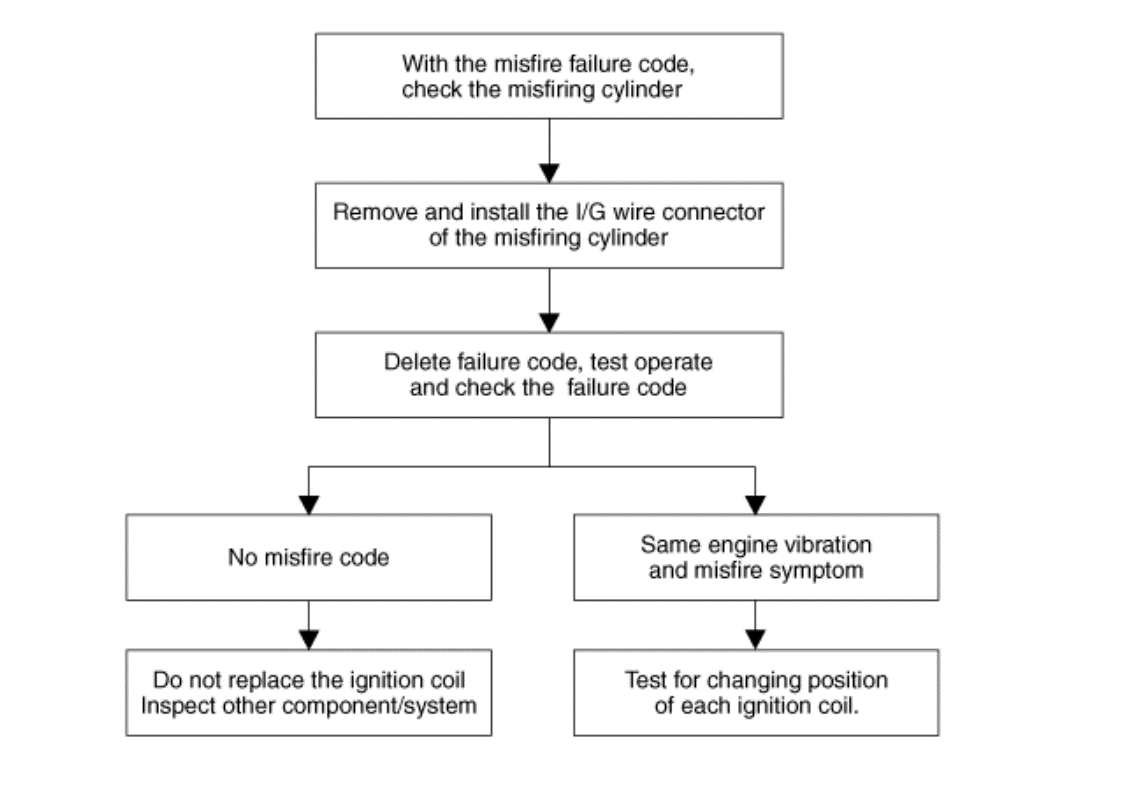

G15694363Courtesy of KIA MOTORS AMERICA, INC.
