Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

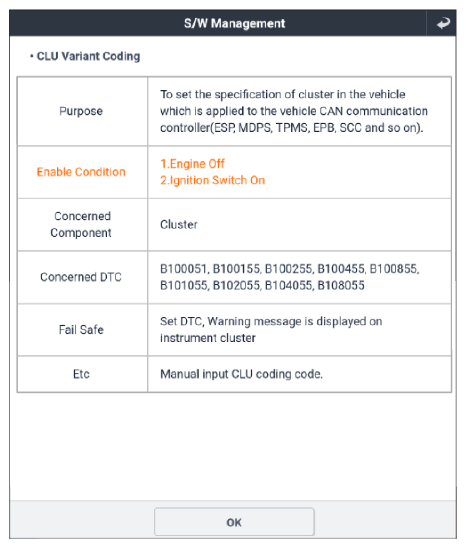

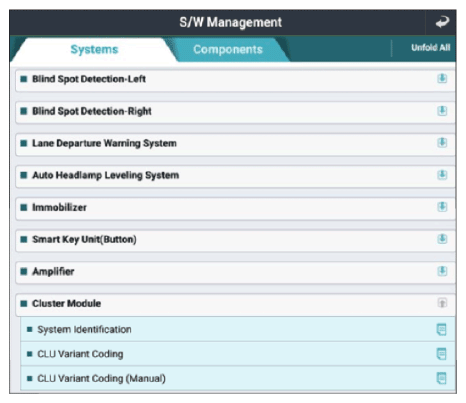

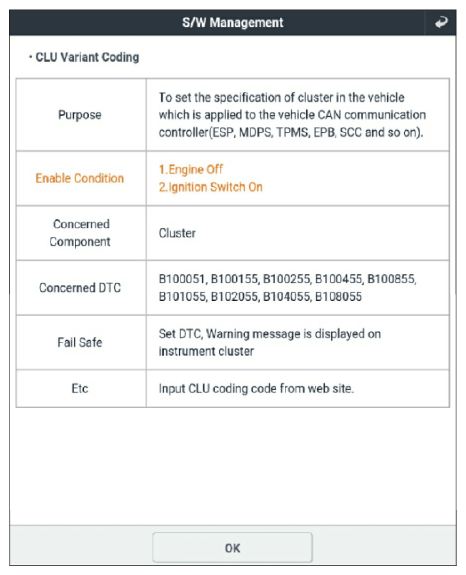

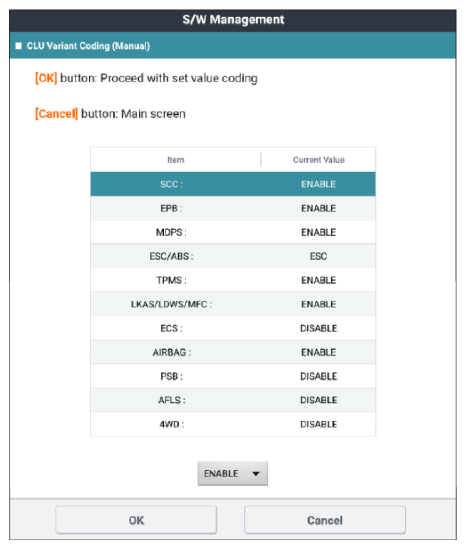

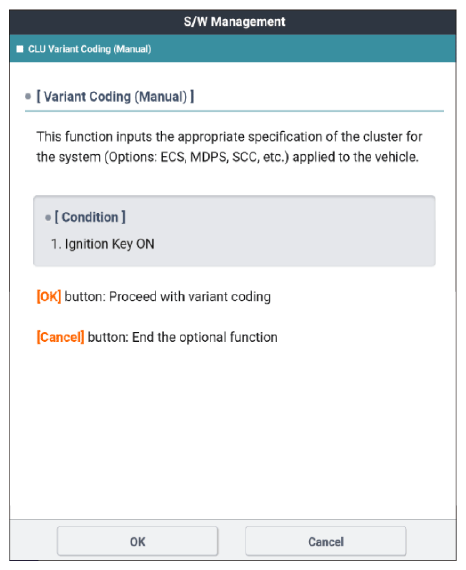

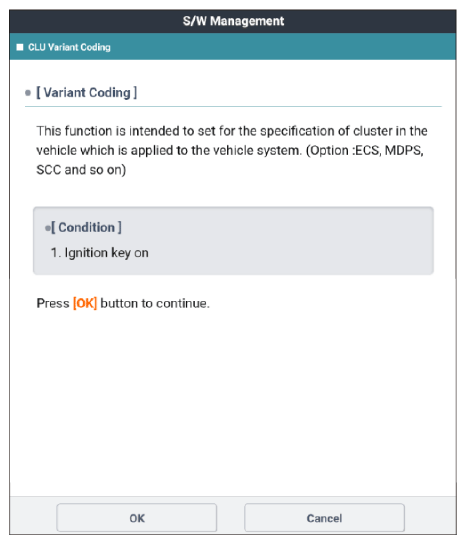

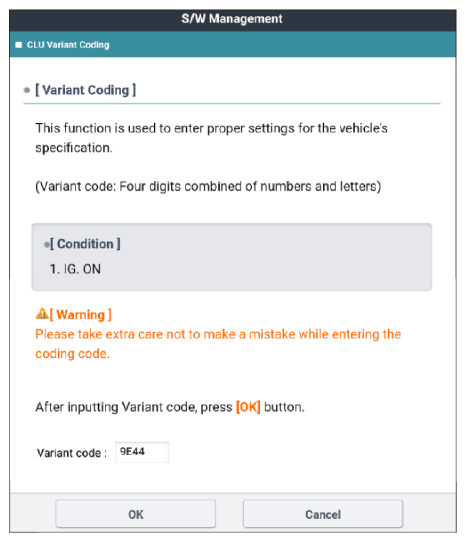

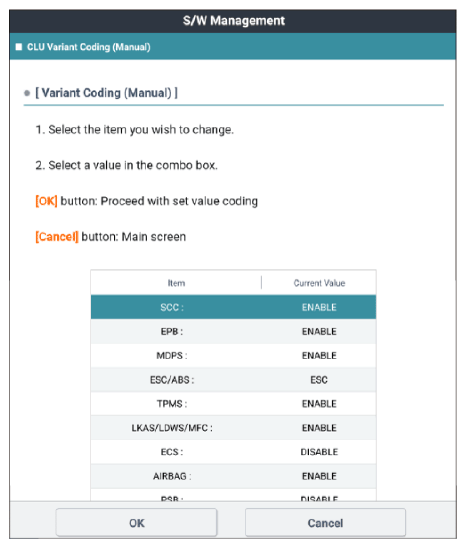

 Fig. 1 to 10
G15728421Courtesy of KIA MOTORS AMERICA, INC.
G15728422Courtesy of KIA MOTORS AMERICA, INC.
G15728423Courtesy of KIA MOTORS AMERICA, INC.
G15728424Courtesy of KIA MOTORS AMERICA, INC.
G15728425Courtesy of KIA MOTORS AMERICA, INC.
G15728426Courtesy of KIA MOTORS AMERICA, INC.
G15728427Courtesy of KIA MOTORS AMERICA, INC.
G15728428Courtesy of KIA MOTORS AMERICA, INC.
G15728429Courtesy of KIA MOTORS AMERICA, INC.
G15728430Courtesy of KIA MOTORS AMERICA, INC.
