Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 10

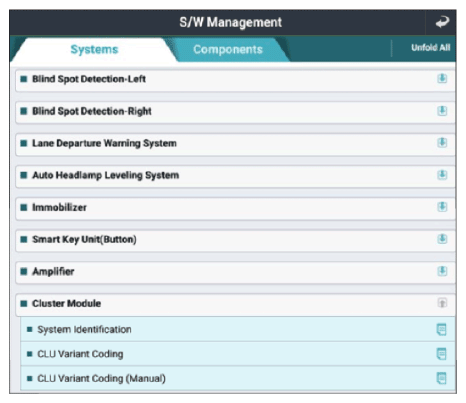

G15728229Courtesy of KIA MOTORS AMERICA, INC.

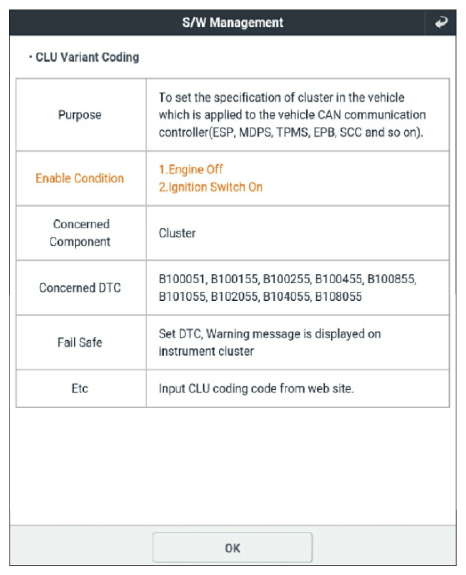

G15728230Courtesy of KIA MOTORS AMERICA, INC.

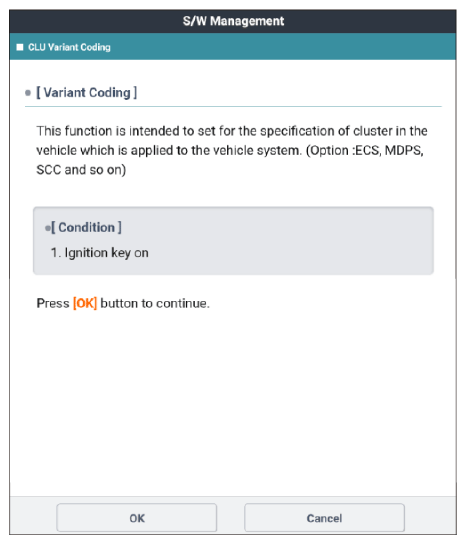

G15728231Courtesy of KIA MOTORS AMERICA, INC.

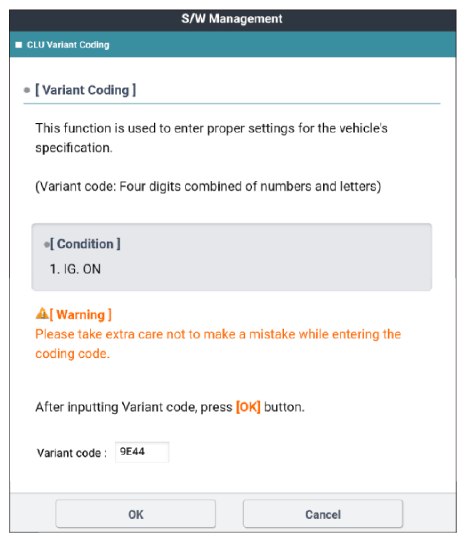

G15728232Courtesy of KIA MOTORS AMERICA, INC.
G15728233Courtesy of KIA MOTORS AMERICA, INC.

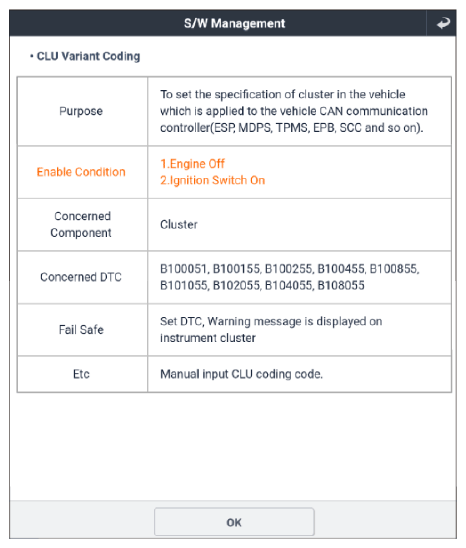

G15728234Courtesy of KIA MOTORS AMERICA, INC.

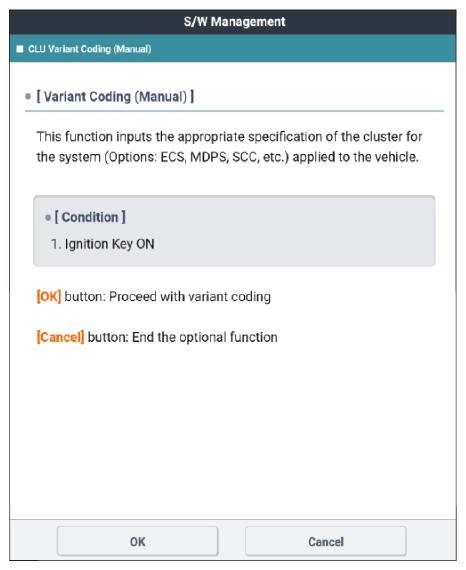

G15728235Courtesy of KIA MOTORS AMERICA, INC.

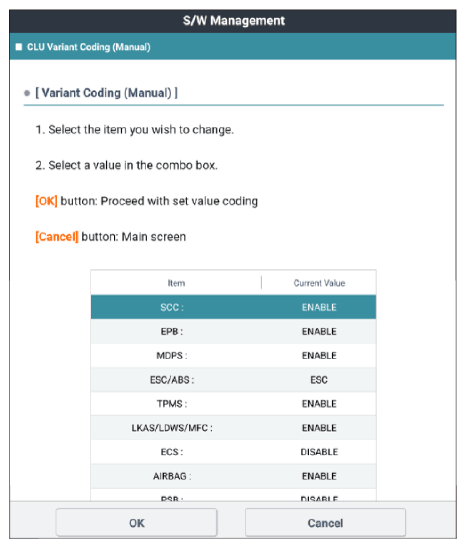

G15728236Courtesy of KIA MOTORS AMERICA, INC.

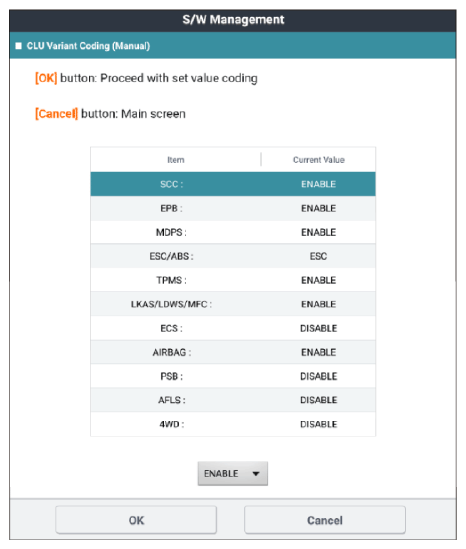

G15728237Courtesy of KIA MOTORS AMERICA, INC.
G15728238Courtesy of KIA MOTORS AMERICA, INC.
