Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 10

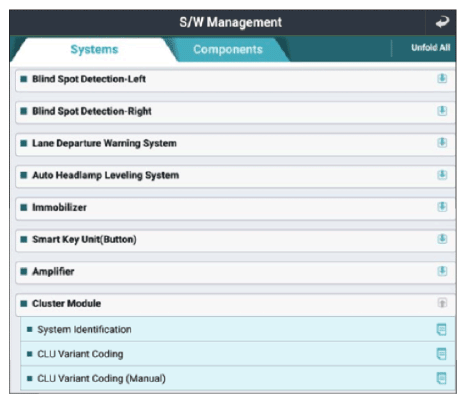

G15728199Courtesy of KIA MOTORS AMERICA, INC.

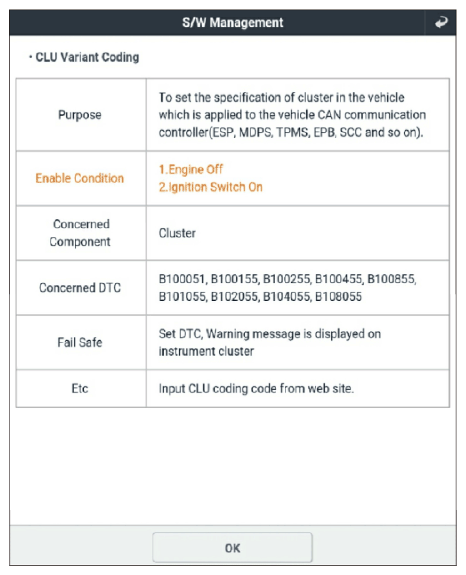

G15728200Courtesy of KIA MOTORS AMERICA, INC.

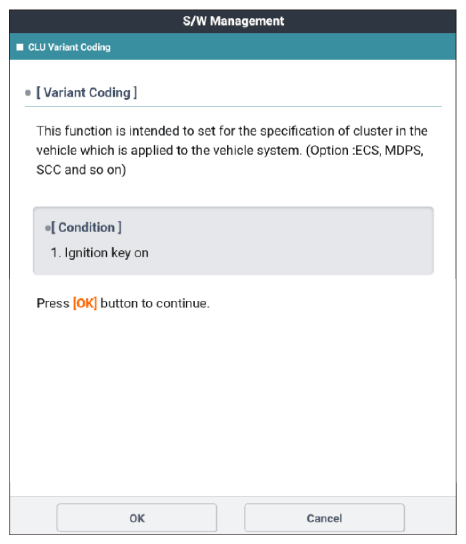

G15728201Courtesy of KIA MOTORS AMERICA, INC.

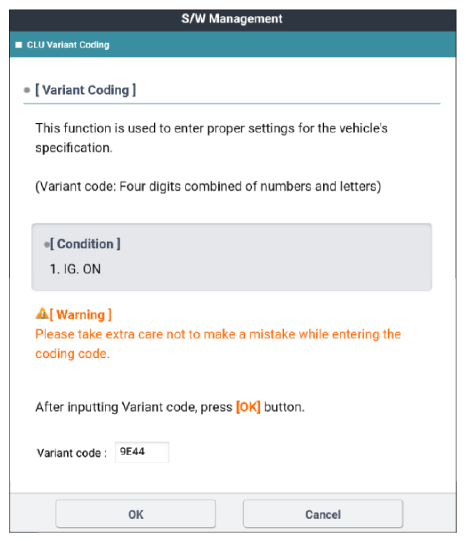

G15728202Courtesy of KIA MOTORS AMERICA, INC.
G15728203Courtesy of KIA MOTORS AMERICA, INC.

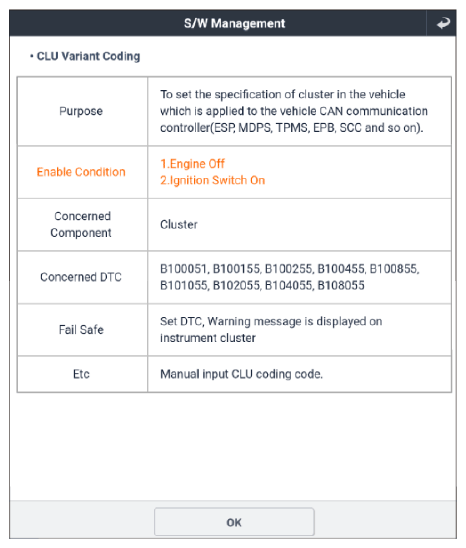

G15728204Courtesy of KIA MOTORS AMERICA, INC.

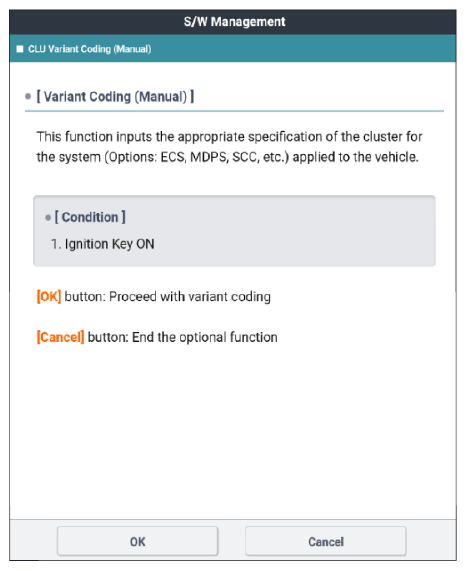

G15728205Courtesy of KIA MOTORS AMERICA, INC.

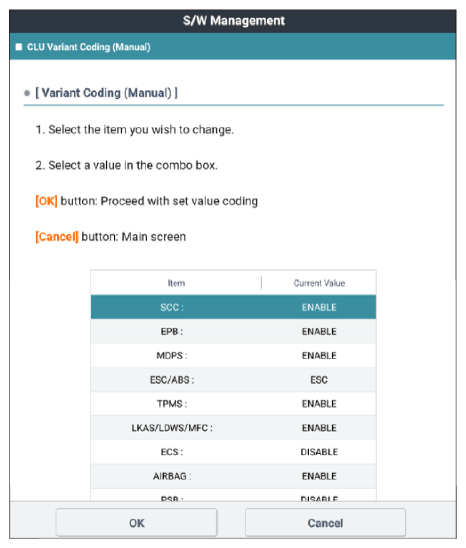

G15728206Courtesy of KIA MOTORS AMERICA, INC.

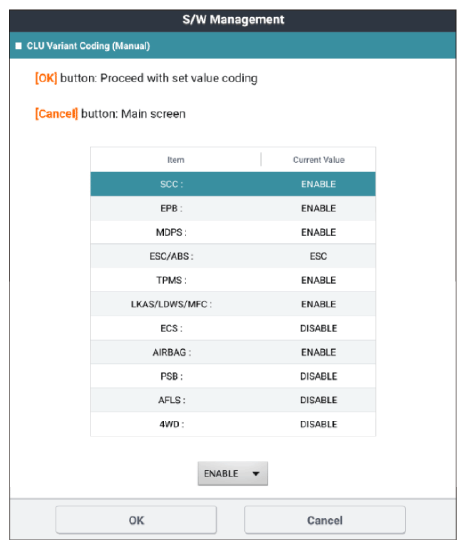

G15728207Courtesy of KIA MOTORS AMERICA, INC.
G15728208Courtesy of KIA MOTORS AMERICA, INC.
