Component Inspection

Inspection Condition	Inspection Procedure	Reference

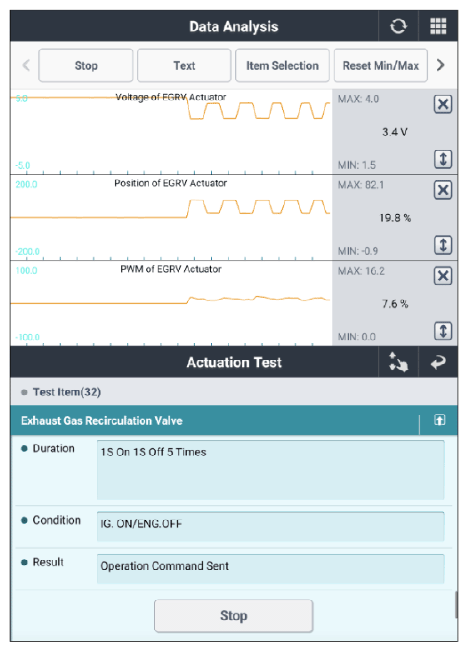

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" of concerned component with KDS.	Fig.1 below

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do troubleshooting steps.
If no problems were found with the circuits or connectors, replace the EGR valve and Go to "VERIFICATION OF REPAIR " procedure.
