Home >> Kia >> 2023 >> Niro Plug-In Hybrid EX >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System (PHEV) >> Oil Pressure Control Solenoid Valve >> Components And Components Location >> Components

Components And Components Location: Components

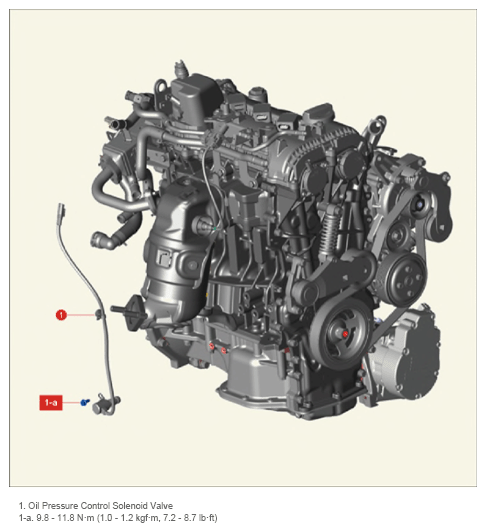

Fig 1: Oil Pressure Control Solenoid Valve Components Location With Torque Specifications

G15787302

Courtesy of KIA MOTORS AMERICA, INC.
