Home >> Kia >> 2023 >> Niro Plug-In Hybrid EX >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System (PHEV) >> Auxiliary Battery Sensor >> Components And Components Location >> Component

Components And Components Location: Component

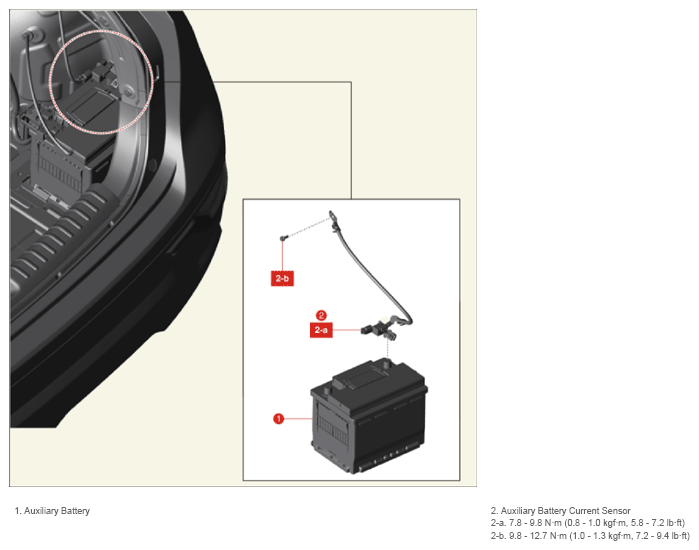

Fig 1: Auxiliary Battery Sensor Components Location With Torque Specifications

G15787424

Courtesy of KIA MOTORS AMERICA, INC.
