Cluster Module Diagnosis (PHEV)
>>
DTC B1020-55: TPMS Present Error - Coding Code Error
>>

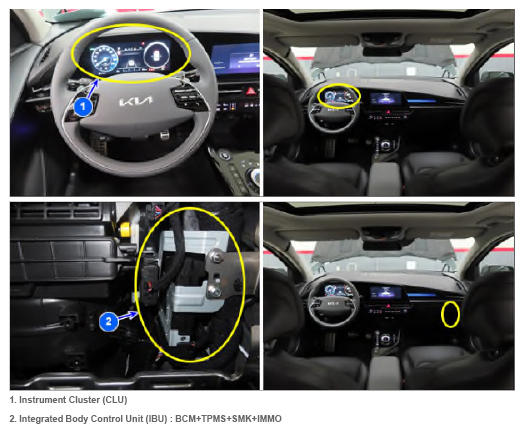

Component Location
Component Location
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
Body Control Module (BCM)
Tire Pressure Monitoring System (TPMS)
Smart Key Module (SMK)
Immobilizer (IMMO)
Courtesy of KIA MOTORS AMERICA, INC.
