Installation - SBW: Installation

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ". If not, it may cause serious accidents due to electric shock or short circuit.
When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

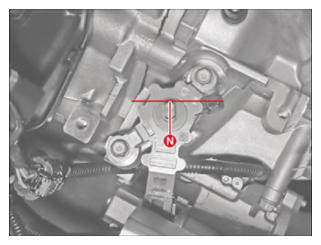

Check that the position sensor is shifted to N.

Courtesy of KIA MOTORS AMERICA, INC.

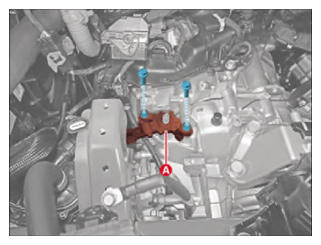

Install the position sensor (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Lightly tighten the mounting bolts so that necessary adjustments can be made.
Install the SST (0K427 - AT100).

Courtesy of KIA MOTORS AMERICA, INC.

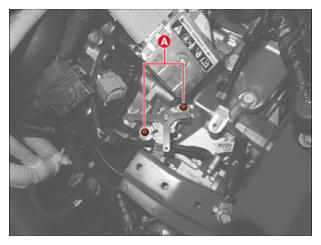

Tighten the bolts (A) to the specified torque.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the SST (0K427 - AT100).

Courtesy of KIA MOTORS AMERICA, INC.

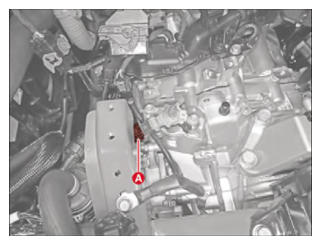

Connect the position sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the electronic shift actuator.
(Refer to DCT Control System - "ELECTRONIC SHIFT ACTUATOR ")
