Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

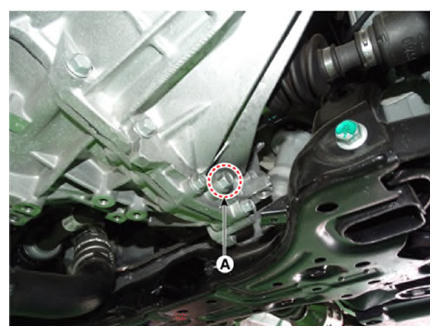

Remove the drain plug (A), allow the oil to drain out and then reinstall the drain plug.
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil drain plug gasket must be replaced with a new one. (Do not reuse it.)

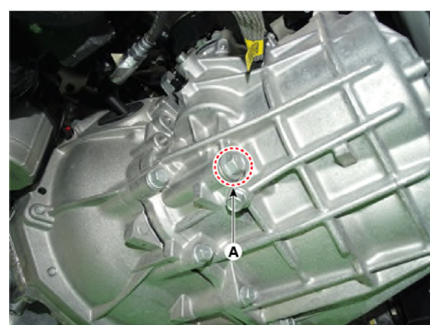

Remove the oil filler plug (A).

Courtesy of KIA MOTORS AMERICA, INC.
Fill the manual transaxle with manual transaxle oil through the filler hole.
Recommended:
- SAE 70W, API GL-4
  - Recommended transaxle oil: SK HK MTF 70W, SHELL SPIRAXS6 GHME 70W, GS CALTEX GS MTF HD 70W, Kia genuine MTF&DCTF 70W SYNTHETIC
Capacity:

1.7 - 1.8 L (0.45 - 0.48 U.S.gal., 1.80-1.90 U.S.qt., 1.50 - 1.58 lmp.qt.)

NOTE: Make sure that oil level is at the proper level (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install the oil filler plug (A).
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf m, 43.4 - 57.8 lb ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing oil filler plug gasket must be replaced with a new one. (Do not reuse it.)
Install the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
