Removal And Installation: Removal

Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to Battery Control System - " AUXILIARY 12 V BATTERY 2WD ")

(Refer to Battery Control System - " AUXILIARY 12 V BATTERY 4WD ")
Remove the floor console assembly.
(Refer to Body - " FLOOR CONSOLE ASSEMBLY ")

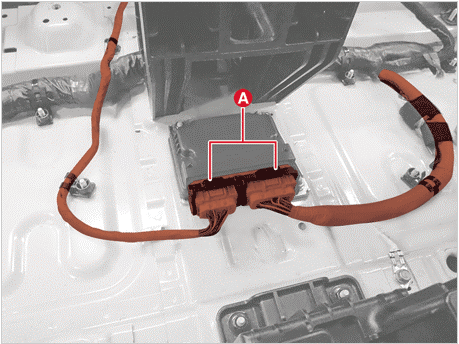

Disconnect the connector (A) by pulling the connector lock lever.

Courtesy of KIA MOTORS AMERICA, INC.

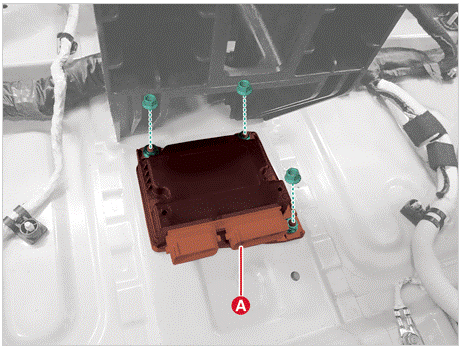

Remove the SRS Control Module (SRSCM) (A) after removing the nuts.
Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not damage the SRS Control Module (SRSCM) connector.
