Components And Components Location: Component

WARNING: This page is about a different variant/trim than selected.

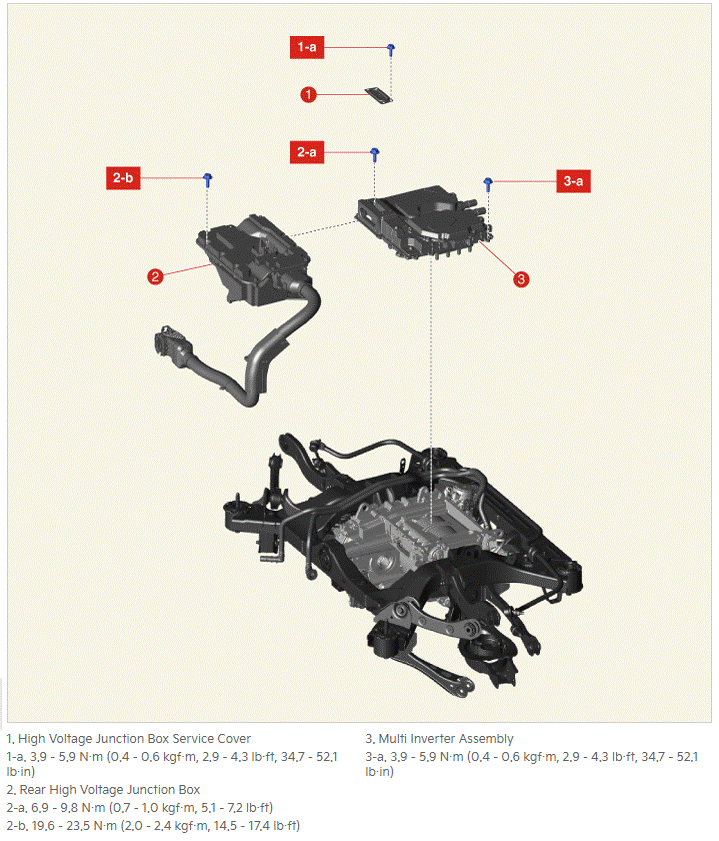

Fig 1: Multi Inverter Assembly Components Location With Torque Specification
G15813403Courtesy of KIA MOTORS AMERICA, INC.
