Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig. 1 to 6

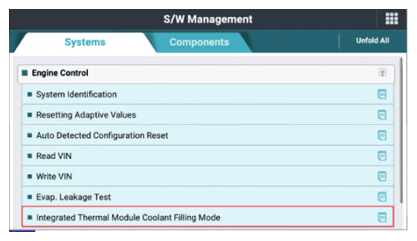

G14807633Courtesy of KIA MOTORS AMERICA, INC.

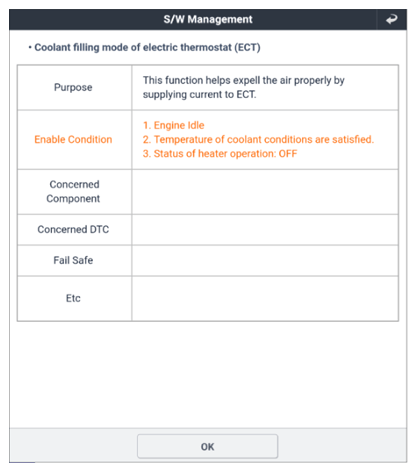

G14807634Courtesy of KIA MOTORS AMERICA, INC.

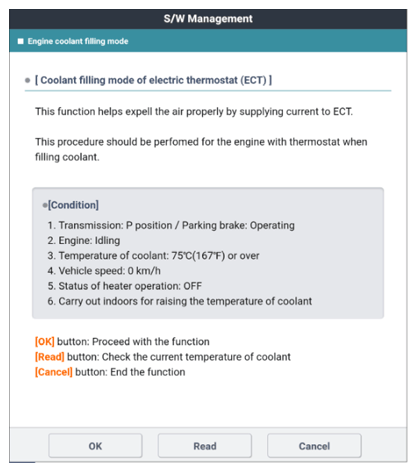

G14807635Courtesy of KIA MOTORS AMERICA, INC.

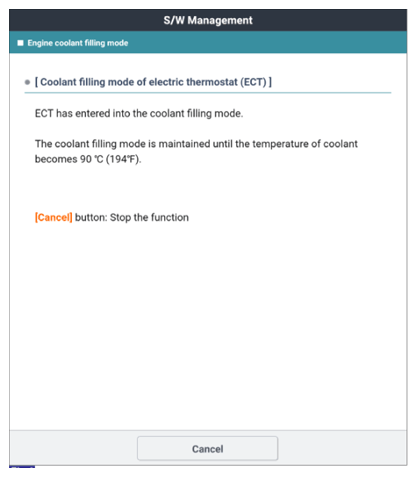

G14807636Courtesy of KIA MOTORS AMERICA, INC.

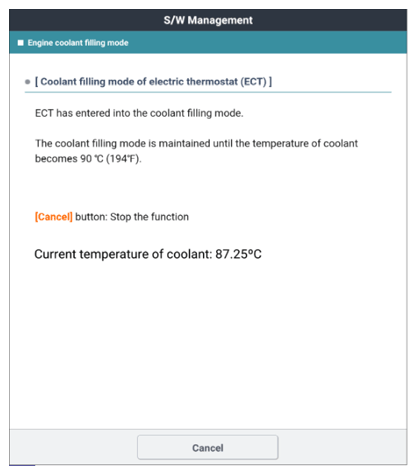

G14807637Courtesy of KIA MOTORS AMERICA, INC.

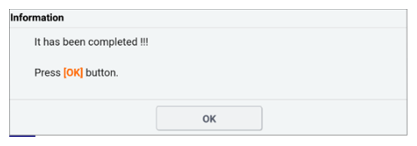

G14807638Courtesy of KIA MOTORS AMERICA, INC.
