Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT" of concerned component with KDS.
 Fig. 1 to 6

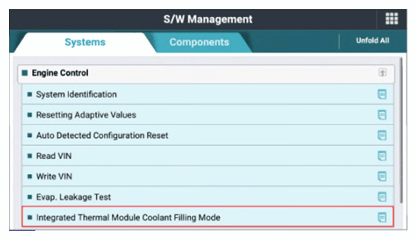

G14807606Courtesy of KIA MOTORS AMERICA, INC.

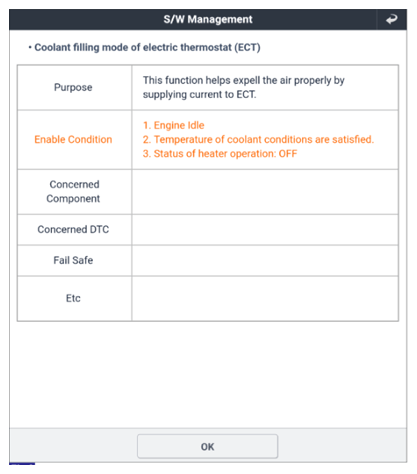

G14807607Courtesy of KIA MOTORS AMERICA, INC.

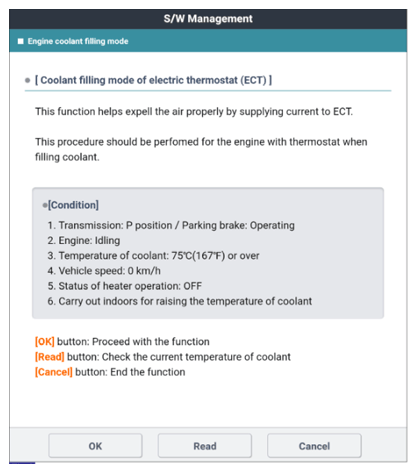

G14807608Courtesy of KIA MOTORS AMERICA, INC.

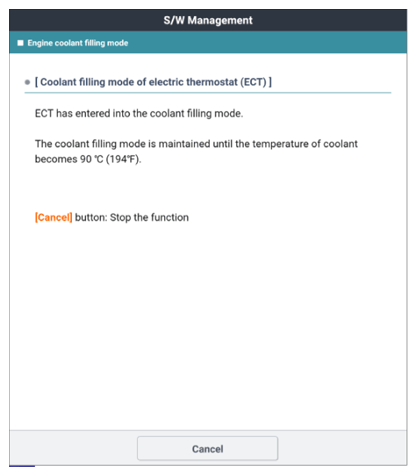

G14807609Courtesy of KIA MOTORS AMERICA, INC.

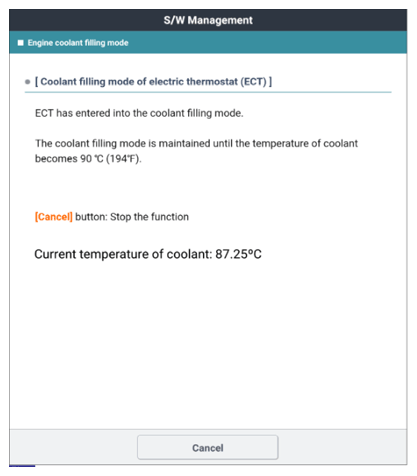

G14807610Courtesy of KIA MOTORS AMERICA, INC.

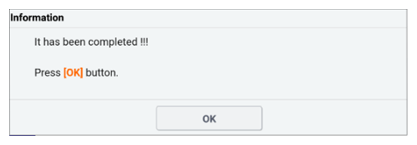

G14807611Courtesy of KIA MOTORS AMERICA, INC.
