Connector & Terminal Function

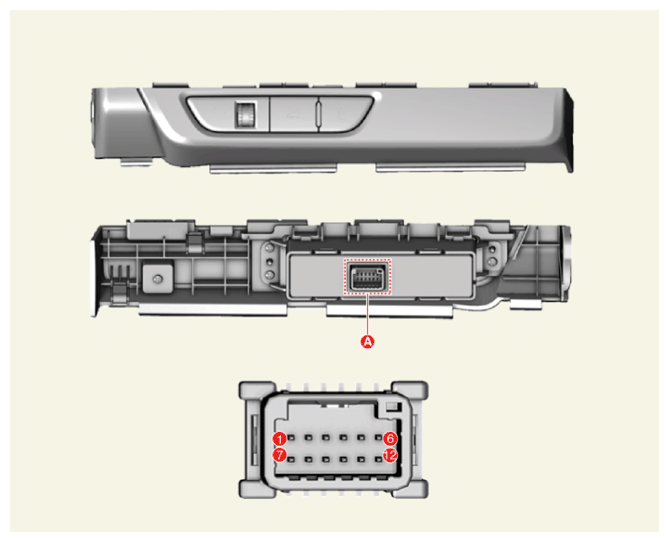

G14798522Courtesy of KIA MOTORS AMERICA, INC.
Connector A
Pin Function
1 Battery (+)
2 IGN
3 Illumination (+)
4 -
5 HLLD Actuator (+) signal
6 Rheostat (UP) signal
7 Rheostat (DOWN) signal
8 LKA signal
9 ESC OFF switch
10 -
11 Illumination (-)
12 Ground
