Component Inspection

Inspection Condition	Inspection Procedure	Reference

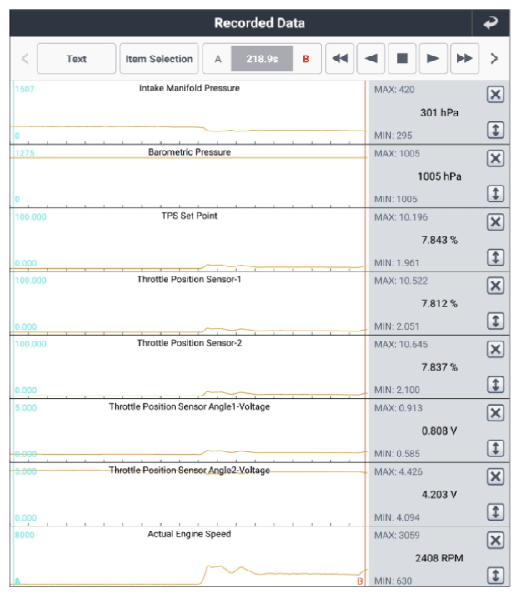

Ignition "ON". Engine "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS.	Fig. 1

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the MAPS and Go to "VERIFICATION OF REPAIR " procedure.
