Circuit Inspection

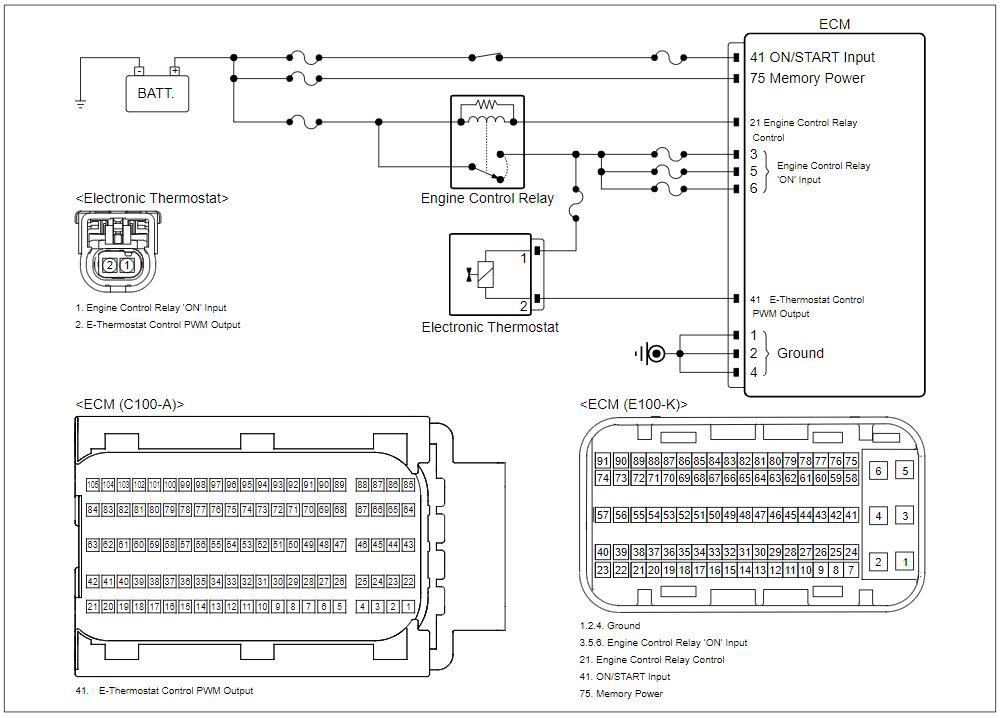

G00613767

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ECT connector	1 (power)	Chassis ground	-	∞(infinity)Ω
	ECT connector	2 (control)	ECM connector	41 (control)	Approx. below 1Ω
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ECT connector	1 (power)	Chassis ground	-	B+
Engine "ON". Perform "Engine coolant filling mode" with "Vehicle S/W Management ".	ECT connector	1 (power)	Chassis ground	-	Fig. 1
	ECT connector	2 (control)	Chassis ground	-	Fig. 1

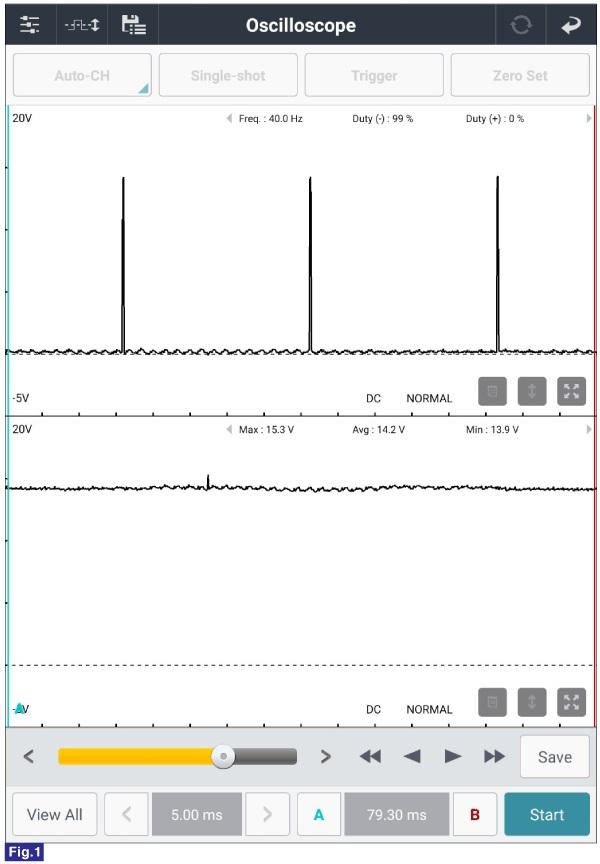

G00613768

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Component Inspection " procedure.

No Good

Repair or replace as necessary and then, go to "Verification Of Repair " procedure.
