Home >> Kia >> 2022 >> Telluride EX, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (11 Of 12) >> DTC P2181-00: Cooling System Performance >> Component Inspection >> Vehicle S/W Management

Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Engine "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figure 1 to 5

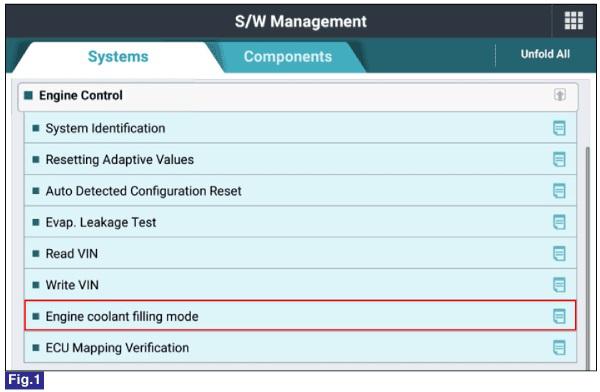

G00613769Courtesy of KIA MOTORS AMERICA, INC.

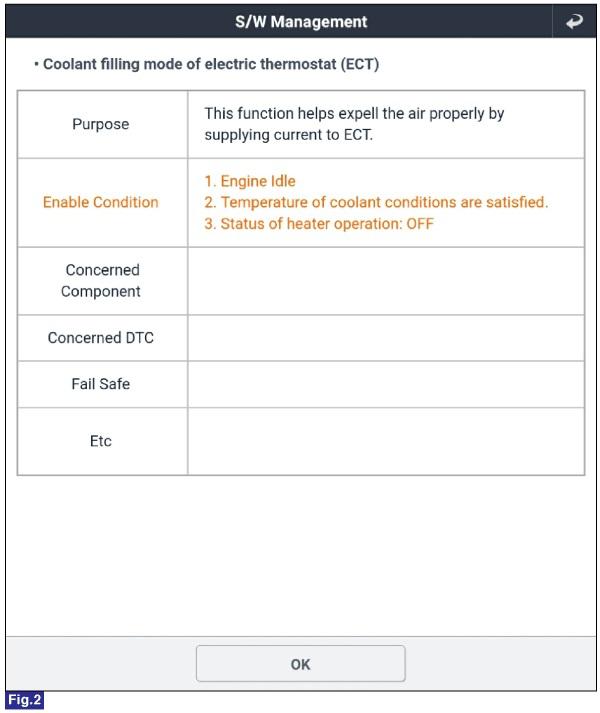

G00613770Courtesy of KIA MOTORS AMERICA, INC.

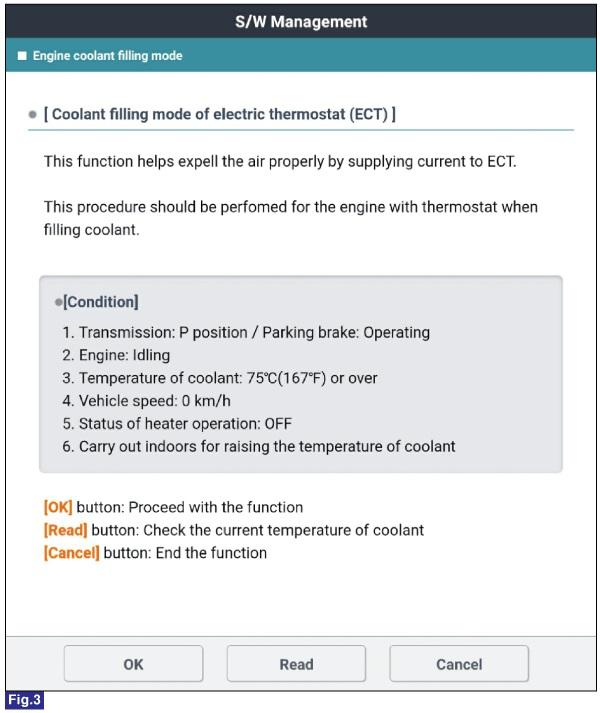

G00613771Courtesy of KIA MOTORS AMERICA, INC.

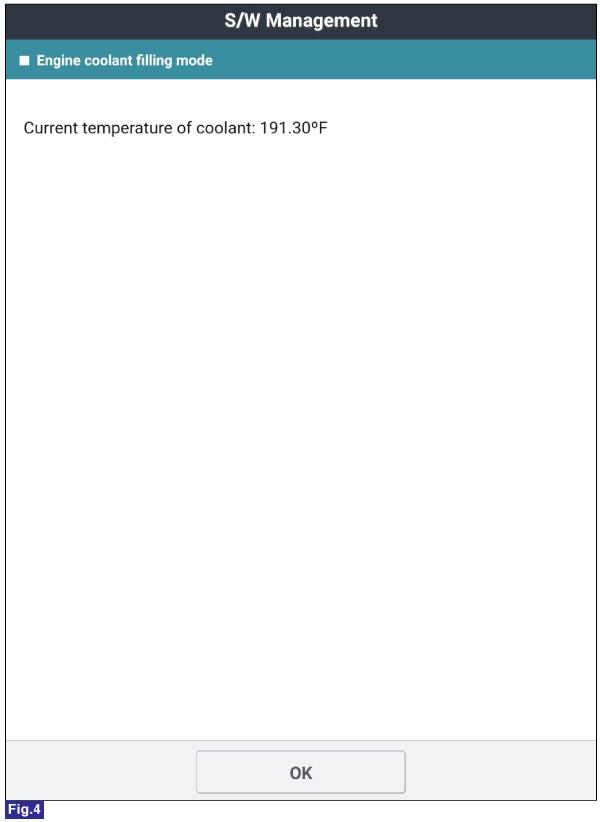

G00613772Courtesy of KIA MOTORS AMERICA, INC.
G00612583Courtesy of KIA MOTORS AMERICA, INC.
