Ignition System Inspection
□ Ignition Coil Inspection
- Refer to
"IGNITION COIL
" and visually and/or physically inspect following conditions;
- Damage, cracks, carbon and flashover.
- Poor connection or damaged harness.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

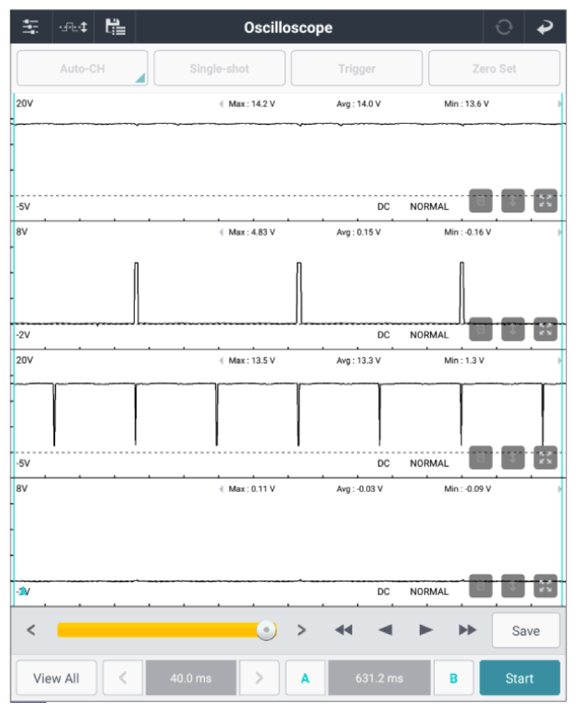

Ignition coils connector | 4 (power) | Ignition coil connector | 2 (control) | Fig.1 |
| Ignition coils connector | 3 (feedback) | Ignition coil connector | 1 (ground) | ||
Good
- Go to "SPARK PLUG INSPECTION " procedure.
No Good
- Repair as necessary and Go to "VERIFICATION OF REPAIR " procedure.
