Circuit Inspection

G14986547

Courtesy of KIA MOTORS AMERICA, INC.

G14986548

Courtesy of KIA MOTORS AMERICA, INC.

CAN Communication Line Inspection
Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference

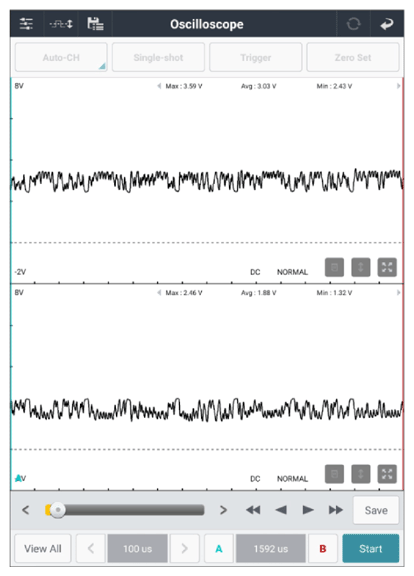

Ignition "ON".	Front A/C control module connector	35 (P-CAN high)	Chassis ground	-	Fig.1
	Front A/C control module connector	34 (P-CAN low)	Chassis ground	-	Fig.1
	ICU connector	19 (P-CAN high)	Chassis ground	-	Fig.1
	ICU connector	20 (P-CAN low)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	Front A/C control module connector	35 (P-CAN high)	Front A/C control module connector	34 (P-CAN low)	Approx. 60Ω
	ICU (component side)	19 (P-CAN high)	ICU (component side)	20 (P-CAN low)	Approx. 120Ω
	ECM (component side)	77 (P-CAN high)	ECM (component side)	60 (P-CAN low)	Approx. 120Ω
	Front A/C control module connector	35 (P-CAN high)	ICU connector	19 (P-CAN high)	Approx. below 1Ω
	Front A/C control module connector	34 (P-CAN low)	ICU connector	20 (P-CAN low)	Approx. below 1Ω
	ICU connector	19 (P-CAN high)	ECM connector	77 (P-CAN high)	Approx. below 1Ω
	ICU connector	20 (P-CAN low)	ECM connector	60 (P-CAN low)	Approx. below 1Ω
Ignition "OFF". Disconnect the battery (-) terminal. Disconnect the electrical connector(s) of all concerned component to the related CAN system.	Front A/C control module connector	35 (P-CAN high)	Chassis ground	-	∞ (infinity)Ω
	Front A/C control module connector	34 (P-CAN low)	Chassis ground	-	∞ (infinity)Ω

G14986549

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Module Circuit Inspection" procedure.

No Good

Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.

Module Circuit Inspection
Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Front A/C control module connector	12, 23, 24 (power)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	Front A/C control module connector	1, 13, 40 (ground)	Chassis ground	-	Approx. below 1Ω

Good

Go to "COMPONENT INSPECTION " procedure.
Repair as necessary and then Go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair open or short in circuit and then Go to "VERIFICATION OF REPAIR " procedure.
