Repair Procedures: Inspection

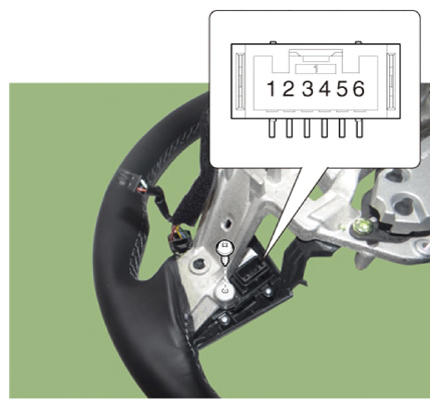

- Check for resistance between terminals in each switch position.
[Trip + SCC + LFA]
| Switch | Connector terminal | Resistance (±3%) |
|---|---|---|
| Cancel | 2-6 | 390 Ω |
| SET - | 610 Ω | |
| RES + | 910 Ω | |
| Cruise ON/OFF | 1.38 kΩ | |
| Cruise & Speed Limit ON/OFF | 2.13 kΩ | |
| SCC (Following distance control) | 3.63 kΩ | |
| Group | 1-6 | 390 Ω |
| Trip Up | 610 Ω | |
| Trip Down | 910 Ω | |
| ENTER | 1.38 kΩ |
